Designation:

PANDUR II 6x6

Info
Manufacturer: General Dynamics European Land Systems-Steyr GmbH
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

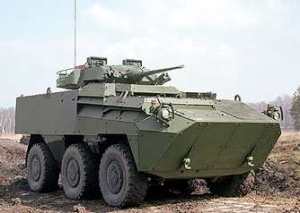

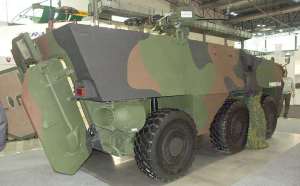

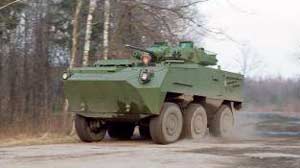

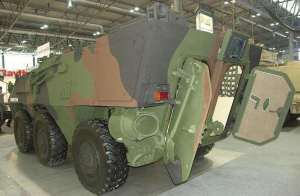

The PANDUR II 6x6 is 6,48m long, 2,67m wide and has a gross vehicle weight of up to 16,5 tons. The vehicle reaches a top speed of 100km/h on the road. The PANDUR II 6x6 easily manages gradients of up to 60% and fording depths of up to 1,5m. The 298 kW engine in combination with the automatic transmission, the 2-stage transfer gear, the modern independent wheel suspension, the tire pressure control system and the Automatic Drivetrain Management (ADM) give the PANDUR II 6x6 a high level of mobility even in heavy terrain. Moreover, the advanced ballistic and mine protection concept offers a high safety level to the crew in every mission. The vehicle and all its systems are being capable to be operated under extreme climatic conditions.


Specifications:
Property Value
Crew
2
Troops
10
Weight (kg)
15500
Payload (kg)
3500
Length (mm)
6600
Width (mm)
2680
Ground clearance (mm)
450
Track (mm)
2190
Wheelbase (mm)
1530
Wheelbase (mm)
1830
Max. road speed (km/h)
105
Max. water speed (km/h)
11
Max. road range (km)
600
Fording depth (mm)
1500
Trench (mm)
1200
Vertical obstacle (mm)
600
Turning circle radius (mm)
9
Engine power output (h.p.)
405
Number of forward gears
6
Number of wheels
6
Number of drive wheels
6
Height (mm)
2008


Has folowing part:
Total Amount
6HP 602 (Transmission)
1
ISLe HPCR (Diesel engine)
1
