Designation:

ZBD-09/VN1

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

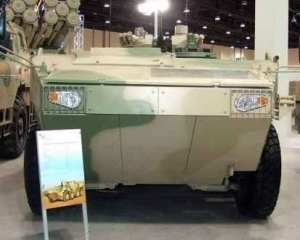

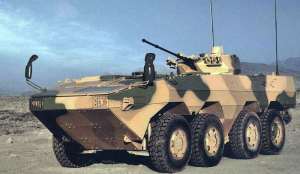

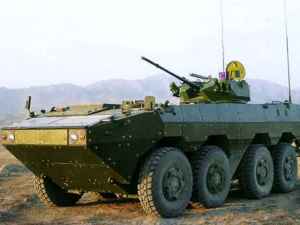

NORINCO VN1 8x8 wheeled armoured vehicle is a state-of-the-art product possessing sufficient payload capacity, outstanding mobility, reliable protection and comfortable interior.

The main weapon fitted on the baseline vehicle is a 30 mm automatic gun, but it can also be used as the loading platform for other weapons. The vehicle can be easily retrofitted as a command vehicle, a rescue vehicle or an ambulance, etc.

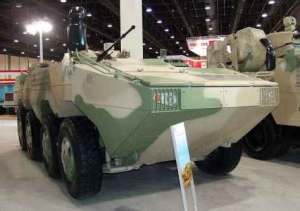

In 2008 it was revealed that China North Industries Corporation (NORINCO) had started to market a new 8×8 wheeled Armoured Personnel Carrier (APC) called the VN1. This was first shown in public in early 2009 during the IDEX International Defence Exhibition held in the United Arab Emirates.The model of the VN1 was shown fitted with a one person turret armed with a 30 mm cannon and 7.62 mm co-axial machine gun. This can be fitted with a NORINCO Red Arrow HJ-73D anti-tank guided weapon if required. During the parade held in Beijing on 1st October to mark the 60th Anniversary of China, a development of VN1 was shown for the first time under the designation of the ZBD-09.

Features

Variants

Specifications:
Property Value
Number of drive wheels
8
Number of wheels
8
Crew
3
Troops
7
Power-to-weight ratio (h.p./t)
20
Weight (kg)
21000
Length (mm)
8000
Width (mm)
3000
Height (mm)
2100
Ground clearance (mm)
450
Max. road speed (km/h)
100
Max. water speed (km/h)
8
Trench (mm)
1800
Vertical obstacle (mm)
550
Main weapon caliber (mm)
30
Auxiliary gun calibre (mm)
7.62
Ammunition of the main gun
200
Ammunition of the auxiliary gun
1000
Number of rocket lunchers
1

Included in:
Product Amount
SH11 (Self-propelled howitzer)
1

Has folowing part:
Total Amount
BF6M1015 (Diesel engine)
1

ZBD-09/VN1 quantities:
Country Qnt
ARGENTINA ARGENTINA
20
CHINA CHINA
50
GABON GABON
15
THAILAND THAILAND
34
VENEZUELA VENEZUELA
60
Qnt:
179

Last Contracts:
Qnt Customer Value Add Date
(Close Date)
Unit cost
3
THAILAND
$5.085.000
Feb 2019
(Dec 2022)
$1,695,000
12
THAILAND
$17.400.000
Feb 2019
(Dec 2022)
$1,450,000
12
THAILAND
$18.600.000
Feb 2019
(Dec 2022)
$1,550,000
9
THAILAND
$12.600.000
Feb 2019
(Dec 2022)
$1,400,000
34
THAILAND
$68.000.000
Jun 2017
(Dec 2020)
$2,000,000
110
ARGENTINA

Jun 2015
(Dec 2020)

60
VENEZUELA
$500.000.000
Mar 2012
(Dec 2015)
$8,333,333
Average Unit Cost:
$4,782,192
