Designation:

Hawkei

Info
Manufacturer: Thales Australia
Product type: Armoured Vehicles
Name: Armoured car

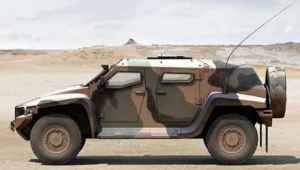

Hawkei Special operations vehicle.

Transfer case

  • GHM 2 speed ratio’s. high 1.075:1 low 1.916:1

Suspension and axles

  • AxleTech 3000 series fully independent progressive coil spring with double wishbone and outboard planetary reduction hub.

Overall ratio 7.485:1

Diff locks

Independent air operated - front, centre and rear

Brakes

Air over hydraulic, outboard disc on all four wheels with ABS and EBD

Steering

Power assisted rack & pinion

Tyres

Michelin 365/88 R20 XZL 152 K

Central Tyre Inflation System (CTIS)

IBF 4 channel with 4 pre-set pressure settings

Air transportable

  • CH-47 external lift

Protection

Hawkei has a unique level of crew protection through its mobility and survivability cell. Ballistic and mine blast protection levels and options are available upon request.

Weapon mounts

Capable of fitting up to 3 weapon systems (1 front, 1 x roof and 1 x rear):

  • Front armourment, co-driver position (swing mount)

  • Roof mounted manual gunring or remote weapon station

  • Rear facing armourment (swing mount)

Options

  • 250 l water tank

  • Cold weather kit

  • Four wheel steering

  • Full doors

  • Half doors

  • Heavy duty bullbar

  • Inline starter generator (65 kW @ 2,500 rpm)

  • LH or RH side mounted spare wheel

  • Remote weapon station

  • Run flat inserts

  • Scalable racking system for payload

  • Trailer

  • Winch

  • Windscreen

Specifications:
Property Value
Number of drive wheels
4
Number of wheels
4
Length (mm)
6225
Width (mm)
2395
Height (mm)
2920
Height to hull top (mm)
2300
Track (mm)
2010
Wheelbase (mm)
3650
Gradient (%)
60
Side slope (%)
40
Vertical obstacle (mm)
450
Weight (kg)
10200
Engine power output (h.p.)
268
Fuel capacity (l)
200
Max. road range (km)
600
Max. road speed (km/h)
130
Turning circle radius (mm)
16000
Fording depth (mm)
500


Has folowing part:
Total Amount
3000 (Suspension)
1
6HP 280 (Transmission)
1
M 16 SCI (Diesel engine)
1


Last Contracts:
Qnt Customer Value Add Date
(Close Date)
Unit cost
1100
AUSTRALIA
$900.000.000
Oct 2015
(Dec 2021)
$818,182
Average Unit Cost:
$818,182
