Designation:

KRAZ-ASV Panthera

Info
Manufacturer: Ares Security Vehicles LLC - ASV
Product type: Auxiliary Vehicles
Name: Mine protected carrier

The new KrAZ-ASV/APC (another name is Panthera K-10Cmd) is built based on a chassis and cab of 4x4 KrAZ-5233HE all-terrain military truck.

It was first shown at IDEX 2013.

Protection level STANAG 4569 – level 2 and 3 kinetic energy and blast threat respectively.

This multirole vehicle is used for carrying personnel of military units and their fire support, for the purpose it can be provided with state-of-the-art weapon systems, active and passive protection systems. APC demilitarized version can be used for carrying personnel of peace-support missions and other persons in conflict zones.

Specifications:
Property Value
Number of drive wheels
4
Number of wheels
4
Crew
2
Troops
10
Engine power output (h.p.)
330
Max. road speed (km/h)
90
Gradient (%)
60
Side slope (%)
30
Weight (kg)
17300
Fording depth (mm)
1500
Turning circle radius (mm)
12000




Related Articles

AutoKrAZ to Unveil New Armored Vehicle at IDEX 2013 (20.02.2013)


Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

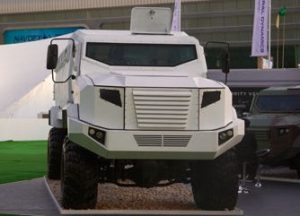

KRAZ-ASV Panthera

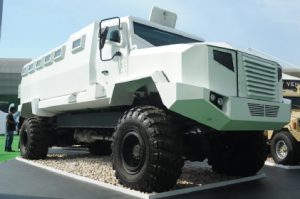

KRAZ-ASV Panthera

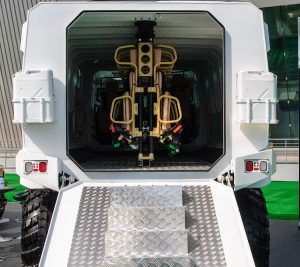

KRAZ-ASV Panthera

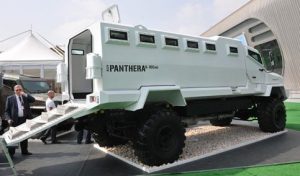

KRAZ-ASV Panthera
