Designation:

SPG 9 Kopye

Info
Manufacturer: Bazalt State Research and Production Enterprise FSUE
Product type: Weapons & Weapon Systems
Name: Recoilless gun

The SPG 9 Kopye (Spear) is a Russian tripod-mounted man-portable, 73 millimetre calibre recoilless gun developed by the Soviet Union. It fires fin-stabilised, rocket-assisted HE and HEAT projectiles similar to those fired by the 73 mm 2A28 Grom low pressure gun of the BMP-1 vehicle. It was accepted into service in 1962, replacing the B-10 recoilless rifle.

The projectile is launched from the gun by a small charge, which gives it an initial velocity of between 250 and 400 metres per second. The launch charge also imparts spin to the projectile by a series of offset holes. Once the projectile has travelled approximately 20 meters from the launcher a rocket motor in its base ignites. For the PG-9 projectile, this takes it to a velocity of 700 metres per second before the motor burns out.

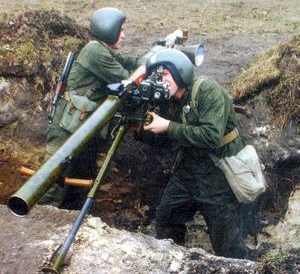

The SPG-9 is light, and is normally transported by vehicle, and carried into position by its two crew. It can be deployed in around a minute. The weapon is in service with a large number of armed forces, and a variety of ammunition is produced, however mostly they are copies of the original Soviet PG-9 HEAT and OG-9 FRAG-HE rounds.

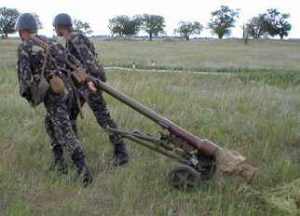

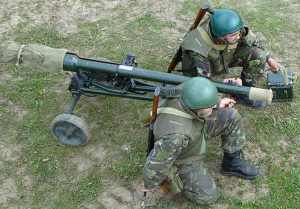

A variant for use with airborne troops including detachable wheels was built as the SPG 9D.


Specifications:
Property Value
Main weapon caliber (mm)
76
Length (mm)
2110
Weight (kg)
48
Rate of fire (rds/min)
6
