Designation:

EOSS-HD

Info
Manufacturer: ASELSAN inc.
Product type: Vision Devices
Name: All-round vision device

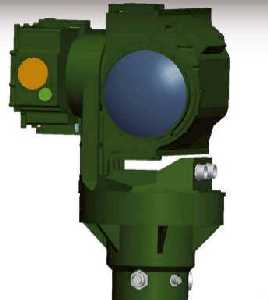

EOSS-HD is an electro optical sensor system which has high definition infrared thermal camera and day sight camera with laser designation/range finding properties.

EOSS-HD gives 7 days 24 hours 360 panoramic reconnaissance, surveillance, target tracking and coordinate determination in all weather conditions. EOSS-HD has extremely high stabilization accuracy that eliminates the oscillations while placed on a deflecting MAST even on the move.

EOSS-HD has optional configurations with single pulse, multi pulse eye safe laser range finders and/or laser target designator.

EOSS-HD has the capability of video recording In both infrared and day sight conditions.

General Specifications

  • 360 day/night panoramic surveillance

  • Day/night automatic target tracking

  • Very high range performance

  • Very accurate stabilization

  • Day/night video recording

  • Single/multi pulse laser range finding

  • Laser target designation (optional)

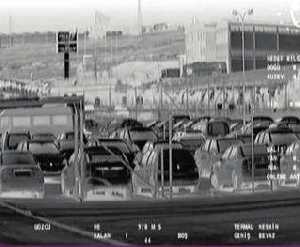

Infrared Thermal Unit (HD)

  • Operating Band: 8-12 μm IR band

  • Analog Video Output: CCIR or RS-170

  • HD Digital Video Output: DVI

Camera Mode

  • Resolution: 576x1690

  • Wide Field of View (Horizontal): 12 10%

  • Narrow Field of View (Horizontal): 3.6 10%

  • Digital Zoom: x2

360 Panoramic Display Mode

  • 1/6-1 frame / second

Day Sight Unit (HD)

  • Field of view: Between 5.4 and 50

  • Elektronic Zoom: 2x

  • HD Digital Video Output: DVI

Laser Range Finder (Standard)

  • Operating Band: 1540 nm (nominal) eyesafe

  • Range: 20 km

  • Accuracy: 5 m

  • Multi target alert

  • First/last reflection options

Laser Range Finder (Multi Pulse)

  • Operating Band: 1540 nm (nominal) eyesafe

  • Pulse: 20 pulse/s

  • Range: 20 km

  • Accuracy: 5 m

  • Multi target alert

  • First/last reflection options

Laser Target Designator (Optional)

Operable in two operating bands; eyesafe and non-eyesafe
