Designation:

BMO-190B

Info
Manufacturer: Izyum Instrument Making Plant
Product type: Vision Devices
Name: Vision device

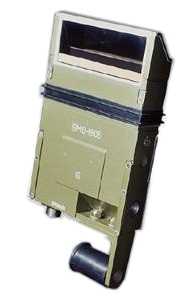

BMO-190B is a terrain surveillance device with electrical heated protective windows.

Armored vehicles configuration.

  • Angle of the field of view in the horizontal plane: not less than 69 degrees

  • Angle of the field of view in the vertical plane: not less than 20 degrees

  • Upper angle of the field of view in the vertical plane: not less than 9 degrees

  • Bottom angle of the field of view in the vertical plane: not less than 9 degrees

  • Angle of the field of vision in the horizontal plane: not less than 32 degrees

  • Angle of the field of vision in the vertical plane: not less than 5.16 degrees

  • Angle of the binocular field of vision in the horizontal plane: not less than 9.5 degrees

  • Periscope line-of-sight height: 19010 mm

  • Visual transmittance factor: not less than 0.43

  • Power supply voltage (DC current): 27 V

  • Power consumption: not more than 110 W

  • Overall dimensions: not more than 156×45×319 mm

  • Weight: not more than 3.4 kg

  • Operating conditions: from -50 to +50
