Designation:

L36.65sb2B

Info
Manufacturer: Izyum Instrument Making Plant
Product type: Vision Devices
Name: Vision device

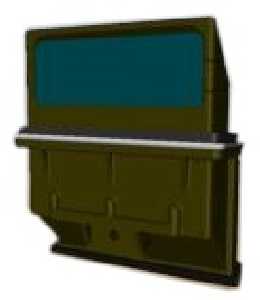

L36.65sb2B is a terrain surveillance device and is installed on armored vehicles.

  • Angle of the field of view in the horizontal plane: not less than 116 degrees

  • Angle of the field of view in the vertical plane: not less than 44 degrees

  • Upper angle of the field of view in the vertical plane: not less than 15 degrees

  • Bottom angle of the field of view in the vertical plane: not less than 29 degrees

  • Angle of the field of vision in the horizontal plane: not less than 49 degrees

  • Angle of the field of vision in the vertical plane: not less than 9 degrees

  • Angle of the binocular field of vision in the horizontal plane: not less than 14 degrees

  • Periscope line-of-sight height: 1135 mm

  • Visual transmittance factor: not less than 0.6

  • Overall dimensions: not more than 152×67×174.5

  • Weight: not more than 2.26 kg

  • Operating conditions: from -50 to +50
