Designation:

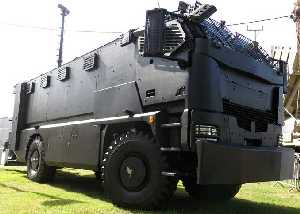

Guarder

Info
Manufacturer: Plasan Sasa Ltd.
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

The unique 4×4 vehicle has a combat weight of 22 tons, and curb weight of 18.5 tons. The maximum payload weight of 3,500 kg. The Guarder is based on a MAN truck chassis, fitted with a spacious protected capsule that can be configured to accommodate 22 troops in addition to the two men crew, a command post, medical facility etc.

The crew compartment has armor conforming to STANAG Level III with Level I protection for the floor. The vehicles are equipped with fire protection systems, chemical attack protection equipment and observation navigation and driving systems. The vehicle on display was also equipped with mast mounted cameras, for situational awareness.

Maintaining high mobility over obstacles, Guarder can traverse 0.6 meter wide trenches, move on slopes up to 60 degrees and 25 degree side slopes, and ford water obstacles 0.6 meter deep and climb a step 0.6 meter high. Using hydraulic/electric assisted steering, the 8.75 meter long vehicle has a turn diameter is only 18 meters.

Specifications:
Property Value
Number of drive wheels
4
Number of wheels
4
Weight (kg)
22000
Payload (kg)
3500
Trench (mm)
600
Vertical obstacle (mm)
600
Fording depth (mm)
600
Length (mm)
8750
Turning circle radius (mm)
9000




Last Contracts:
Qnt Customer Value Add Date
(Close Date)
Unit cost
6
BRAZIL
$9.500.000
Jul 2014
(Dec 2015)
$1,583,333
Average Unit Cost:
$1,583,333
