Designation:

Uran-6

Info
Manufacturer: JSC 766 UPTK
Product type: Auxiliary Vehicles
Name: Robot, Unmanned Vehicle

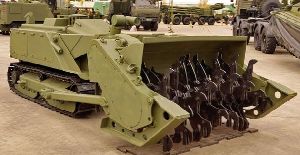

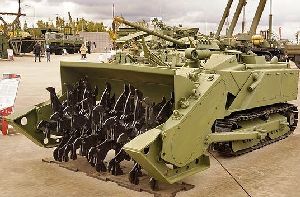

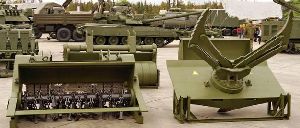

URAN-6 - is a versatile robotic system weighing up to six tons for light tracked platform. URAN-6 designed for in breaching minefields and area demining. During the cleaning of the area of explosive ordnance, he avoids direct contact with the ammunition of sappers in the progress of their preparations for the detection and destruction.

Specifications of the base vehicle:

  • Weight with trawl - 6.8t

  • Dimensions - 4455mm x 2015mm x 1490mm

  • Bandwidth continuous trawling-1.6m

  • Maximum speed-5 km/h

  • Control - remote

  • Minimum weight of one of the destroyed GP - 0.1 kg

  • Maximum weight of one of the destroyed GP - 4 kg


Specifications:
Property Value
Weight (kg)
6800
Length (mm)
4455
Width (mm)
2015
Height (mm)
1490
Engine power output (h.p.)
240
