Designation:

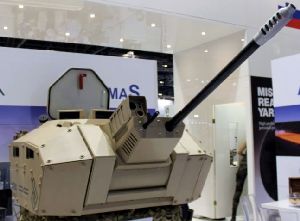

ASGARD 127

Info
Manufacturer: Valhalla
Product type: Turrets
Name: Turret

ASGARD 127 is a one man turret. Endless possibilities.

  • Fully enclosed turret

  • Works without power (prepared for upgrade to electric driveand Connection options to the 24V vehicle routing)

  • Possibility of battery installation in the turret for night optical devices, triggering smoke grenades and coaxial machine guns

  • Made from top quality Slovenian armoured steel Protac 500 or similar

  • Robust bearing ring with internal gearing

  • All ammunition located in the turret

  • Large quantity of ammunition ready for use

  • Twice as much spare ammunition

  • Ammunition in the attached box or in a box in the turret connected to the main gun by ammunition feed chute

  • Ammunition reloading from inside the vehicle

  • Vehicle installation in a few hours

  • Extremely easy system maintenance

  • Easy to use, 1 hour for basic instructions

  • Armoured protection up to STANAG 4569 Level 3

  • The turret has a folding seat allowing the operator to stand or sit

Specifications:
Property Value
Length (mm)
1620
Width (mm)
1415
Height (mm)
690
Main weapon caliber (mm)
12.7
Elevation (degree)
45
Depression (degree)
-12
Traverse arc (degree)
360
Weight (kg)
50
Ammunition of the main gun
250
Auxiliary gun calibre (mm)
7.62
