|Manufacturer:||Defence Industries Organisation (D.I.O.)|
|Product type:||Armoured Vehicles|
|Name:||Main battle tank|

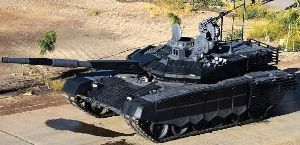

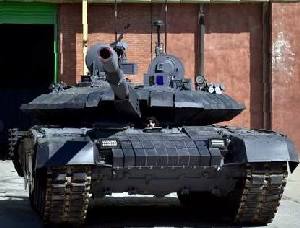

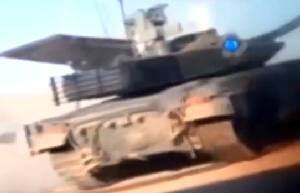

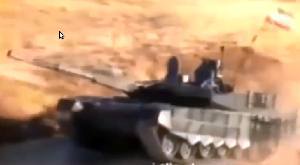

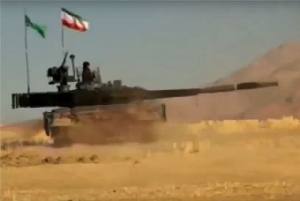

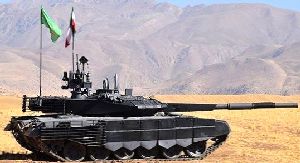

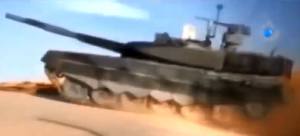

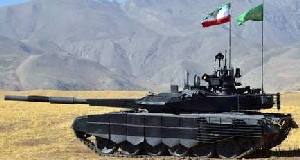

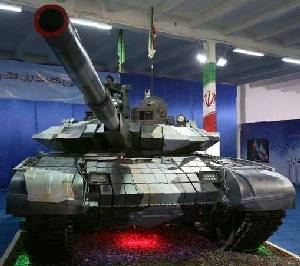

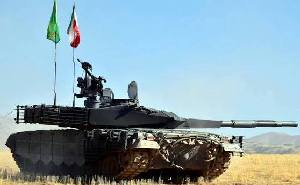

The overall layout of the Karrar MBT is similar to the Russian-made T-90MS MBT with the driver's compartment at the front, two-man turret in the centre and engine and transmission at the rear.
The driver is seated in the centre of the hull.

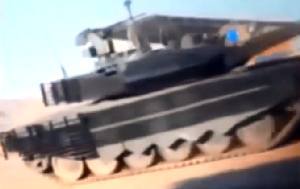

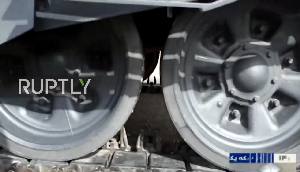

The suspension consists on each side of six dual rubber-tired road wheels with the drive sprocket at the rear and idler at the front. The upper part of the suspension is protected by side skirts.

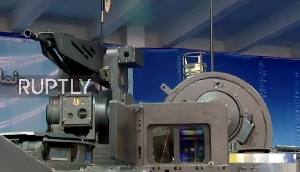

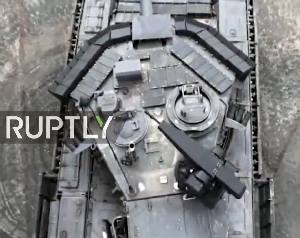

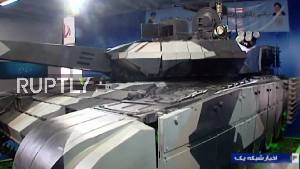

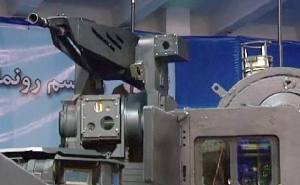

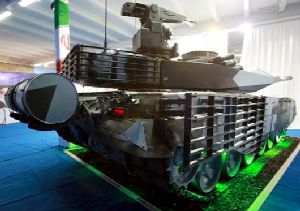

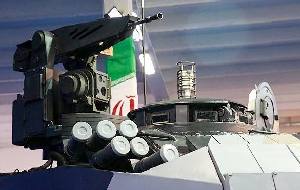

The turret has a rear extension which can be the automatic loading system of the main gun. The main armament of the Karrar could be a 125 mm smoothbore gun. A remote weapon station is mounted on the top of the turret which can be armed with a 12.7 mm or 14.5mm heavy machine gun.
Banks of electrically operated smoke grenade dischargers are mounted either side of the turret.
