Designation:

QUATOR

Info
Manufacturer: TECDRON Robotic Systems
Product type: Auxiliary Vehicles
Name: Robot, Unmanned Vehicle

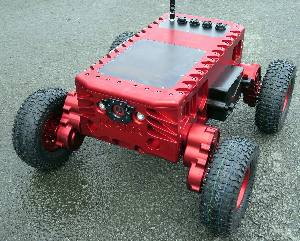

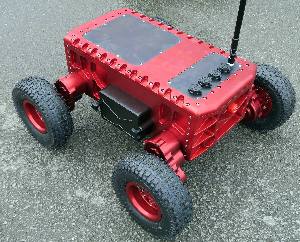

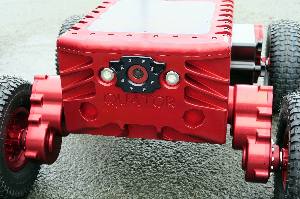

QUATOR is a rapid response tele-operated robot.

Its designed for surveillance, inspection, research, programs development.

Its powerful engine allows more than 15 mph.

Weight, less than 50 Kg, gives agility and flexibility.

Fully waterproof IP67, this robot is the ideal platform to implement your studies and research programs components.

Very easy to drive, its alloy aircraft design gives it unparalleled durability.

Feature

  • Dimensions ( LxWxH ) : 800 x 715 x 375mm

  • Weight : 45 Kg

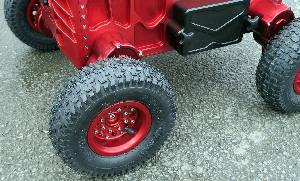

  • Wheels : 260 mm diameter

  • Battery life : 4 hours

  • Electrical energy : battery L-ION

  • Payload : 50 Kg

  • Speed : 15 Km/h

  • Obstacle clearance : up to 20 cm

  • Slope : 45

  • Side-slope : 40

  • Corrosion treatment

  • Los ( external ) : 1 Km

  • Los ( internal ) : 300 meters

  • Microphone / Audio recording

  • Numeric video transmission

  • Front wide angle lens video HDTV 720p

  • Rear wide angle lens video HDTV 720p

  • Led lighting

  • Rack battery 24V-30A/h

  • Simple Charger 24V-10A/h

Specifications:
Property Value
Weight (kg)
95
Number of wheels
4
Number of drive wheels
4
Payload (kg)
50
Max. road speed (km/h)
15
Length (mm)
800
Width (mm)
715
Height (mm)
375
Time of continuous operation (hours)
4
Distance of remote control (m)
1000
