Designation:

Mosquito

Info
Manufacturer: Minotor-Service Unitary Enterprise
Product type: Armoured Vehicles
Name: Tracked armoured personnel carrier

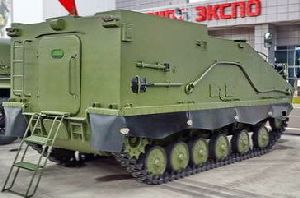

Mosquito is a family of tracked armored vehicles. For the first time the vehicle was presented at the Milex-2014 exhibition.

Mosquito is proposed as a replacement for MTLB, which is not produced in the Russian Federation and Belarus.

On one basis, it is proposed to create a family, which includes:

  • open vehicle for tactical reconnaissance, patrolling and security

  • closed vehicle for tactical reconnaissance, patrolling and security with enhanced armament

  • open air defense vehicle

  • fire support vehicle

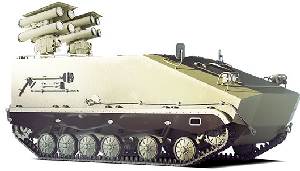

  • anti-tank missile system

  • vehicle for transportation of oil or ammunition

  • air defense intelligence vehicle

  • command vehicle

  • armored repair and recovery vehicle

  • electronic warfare vehicle

  • ambulance vehicle

To implement the family, the basic chassis can have three versions:

  • 6-wheels open vehicle

  • 6-wheels closed vehicle

  • 7-wheels open vehicle

The vehicle is powered by a six-cylinder four-stroke diesel engine with a power of 220 kW, coupled with a hydro-mechanical transmission, which has 6 forward and 1 reverse gears. The turning mechanism is a two-flow stepless with a hydrostatic drive.

Suspension is torsion, with shock absorbers.

Specifications:
Property Value
Weight (kg)
11200
Payload (kg)
1200
Length (mm)
5980
Width (mm)
2400
Height (mm)
2150
Ground clearance (mm)
390
Max. road speed (km/h)
70
Number of forward gears
6
Number of reverse gears
1
Max. road range (km)
400
Fuel capacity (l)
360
Max. water speed (km/h)
5
