Designation:

SAMUM

Info
Manufacturer: JSC Podolsk Electromechanical Plant of Special Machine Building - PEMZ Spetsmash
Product type: Armoured Vehicles
Name: Fire support vehicle

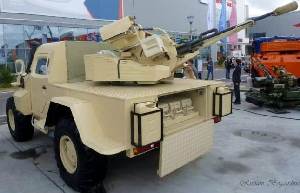

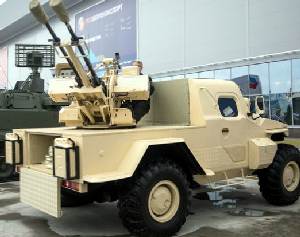

A demonstrator of the Samum Self-Propelled Air Defense Vehicle armed with a ZU-23/30M1-4 anti-aircraft twin gun was first introduced at the "Army-2017" forum. The developer of Samum is Podolsk Electromechanical Plant of Special Machine Building (PEMZ Spetsmash).

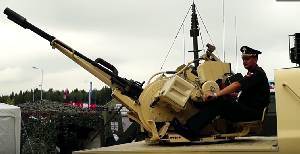

ZU-23/30M1-4 antiaircraft twin gun is designed to protect against tactical fighters, assault aircraft, helicopters and UAVs operating at low altitudes at any time of day and reduced visibility. It can fire in automatic, semi-automatic and manual modes.

The target detection radius is at least 8 km. The firing range is up to 2500 meters, the firing height is 1500 meters.

The chassis of the vehicle is designed on the Ural truck basis, it has an independent suspension. It used some units from the BTR-80 8x8 APC.

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Main weapon caliber (mm)
23
Length (mm)
5000
Width (mm)
2750
Height (mm)
2700
Ground clearance (mm)
500
Wheelbase (mm)
3100
Track (mm)
2600
Weight (kg)
8000
Payload (kg)
1500
Fuel capacity (l)
140
Max. road speed (km/h)
100
Engine power output (h.p.)
200
Maximum torque (Nm)
530
Max. road range (km)
1000
Gradient (%)
60
Side slope (%)
30
Fording depth (mm)
1000
Turning circle radius (mm)
11000
Crew
3
Engine power output (h.p.)
160
