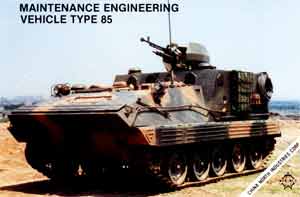

Designation:

Type 85

Info
Manufacturer: NORINCO - China North Industries Group Corporation - CNGC
Product type: Armoured Vehicles
Name: Engineer vehicle

Specifications:
Property Value
Length (mm)
6125
Width (mm)
3060
Height (mm)
2949
Weight (kg)
15000
Crew
1
Troops
5
Max. road speed (km/h)
60
Max. water speed (km/h)
6
Engine power output (h.p.)
320
Max. road range (km)
500
Ground clearance (mm)
460
Vertical obstacle (mm)
600
Gradient (%)
60
Main weapon caliber (mm)
12.7
