Designation:

CM30

Info
Manufacturer: Minotor-Service Unitary Enterprise
Product type: Turrets
Name: Weapon station

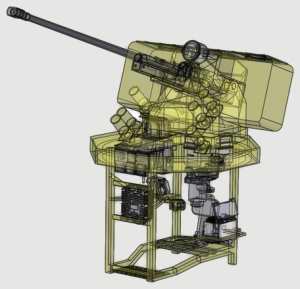

The CM30 one-man turret is designed for installation on a wide lange of light-weight armored vehicles:

  • BTR-60, BTR-70, and BTR-80 wheeled armored personnel carriers

  • BTR-50PKM and OT-62 Topaz tracked armored personnel carriers

The weapon system of the turret comprises:

  • 2A42 30mm automatic cannon

  • PKT 7.62mm coaxial machine gun

The fire control system comprises:

  • combined (day, active-passive night) gunner sight

  • 2-plane stabilizer and stabilized weapon laying system

The CM30 control system ensures:

  • day/night target acquisition and identification

  • effective fire-on-the move ground target engagement capability

The CM30 turret is fitted with smoke grenade dispenser system used for setting smoke screens and vehicle camouflage.

The weapon system is stabilized in 2 planes. The module has full electric power traverse through 360° and -4°...32° elevation. Manual controls are provided for emergency use.

Specifications:
Property Value
Main weapon caliber (mm)
30
Auxiliary gun calibre (mm)
7.62
Weight (kg)
1300
Number of smoke grenade launchers
6
Ammunition of the main gun
125
Ammunition of the auxiliary gun
2000

Included in:
Product Amount
BTR-50PKM (Tracked armoured personnel carrier)
1
