Designation:

TSV

Info
Manufacturer: Force Protection, Inc.
Product type: Auxiliary Vehicles
Name: Maintenance and recovery vehicle

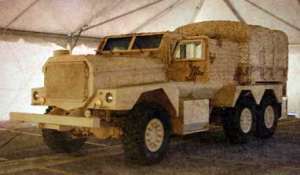

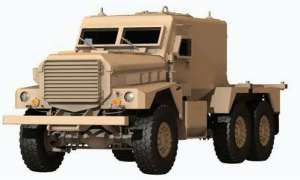

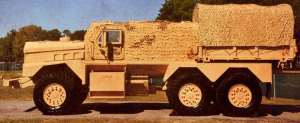

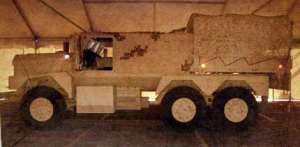

Force Protection® Industries, drawing on field experience with its combat-proven Cougar®, Mastiff, and Ridgback line of protected vehicles, has developed the Tactical Support Vehicle System (TSV) to provide survivable logistics support capability essential for mobile operations. Based on the successful Cougar®/Mastiff 6X6, TSV is a multi-mission adaptable platform that can be configured to address a wide range of support tasks.

Specifications

  • Engine: Caterpillar C7 diesel

  • Transmission: Allison 3500 SP series

  • Front axle: Marmon-Herrington MT-22

  • Rear axle: Marmon-Herrington R-22

  • Tires: Michelin XZL 395/85R20

  • Run flats: Hutchinson VFI

  • Electrical: 24 volt, 570 amp

  • Brakes: Pneumatic, S-CAM

  • HVAC - Heating: dual units rated at 28,000 & 46,000 BTUS

  • HVAC - Air conditioning: dual units rated at 21,000 & 33,000 BTUS

  • Restraints: five point harness, all occupants

  • Armor/Glass/Mine protection: per customer requirements

  • Hatches: 1: Roof M1114 ring

  • Doors: 2: driver, CO-driver

  • Air transportability: certified MIL-STD-209K

  • C4ISR backbone: VTHMS - Vehicle tactical hub management system

Specifications:
Property Value
Engine power output (h.p.)
370
Maximum torque (Nm)
1234
Engine power output (h.p.)
112
Max. road range (km)
677
Crew
3
Troops
2
Height (mm)
2710
Width (mm)
2560
Length (mm)
5990
Weight (kg)
12700
Payload (kg)
9000
Fording depth (mm)
1000
Ground clearance (mm)
380
