Designation:

THUNDER

Info
Manufacturer: Gaia Automotive Industries Ltd.
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

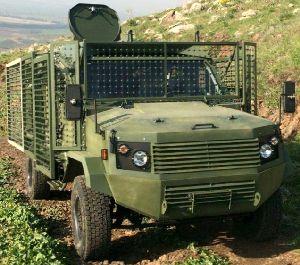

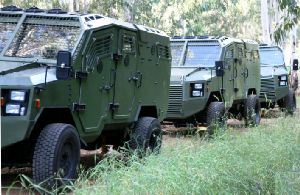

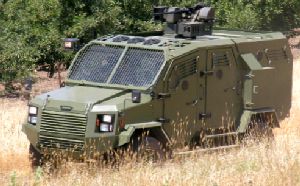

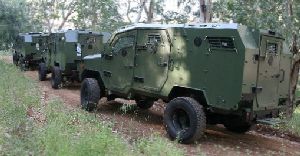

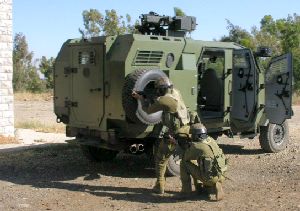

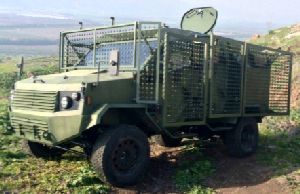

THUNDER is multi-purpose 4×4 armored vehicle carrying up to 12 people. Light protection level and 1.8 ton payload.

The vehicle has a frame. It is based on the Ford F-550.

Typical applications:

  • personnel carrier

  • police logistics

  • Peacekeeping

  • ambulance and more

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Crew
3
Max. road range (km)
600

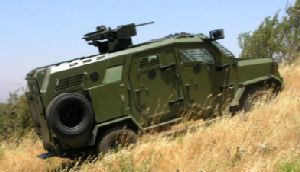

Gradient (%)
60
Side slope (%)
35

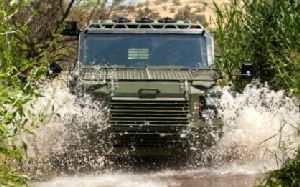

Fording depth (mm)
800
Turning circle radius (mm)
6800
Max. road speed (km/h)
130
Weight (kg)
8700
Payload (kg)
1800
Length (mm)
5658
Width (mm)
2353
Height (mm)
2480
Ground clearance (mm)
270
Engine power output (h.p.)
300
Maximum torque (Nm)
894
Troops
8
