Designation:

BLR

Info
Manufacturer: SBB Blindados
Product type: Armoured Vehicles

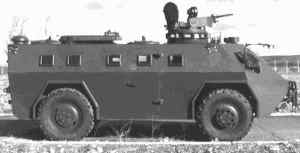

Name: Wheeled armoured personnel carrier

The BLR wheeled APC was developed to meet Spanish Army requirements for a low cost protected cross country vehicle which could meet various border patrol, internal security and airport security functions. The BLR was developed by the Santa Barbara Group and was designated the BLR 3545.

The layout of the 4 x 4 BLR differs from most other vehicles of its type in having the engine located ventrally at the rear, over the rear axle. Once the occupants have entered via two doors in the hull rear (there are also two side doors, one each side) the interior therefore has a relatively large unimpeded area with space for 12 occupants plus the driver. Vision blocks are situated along each side wall while the vehicle commander is provided with a centrally-located cupola featuring all-round vision devices. If required, a 7.62 or 12.7-mm MG may be mounted over this cupola, possibly in a small turret; it has been proposed that this weapon station could accommodate heavier weapons, such as 20 or 25-mm cannon or even a 90-mm gun turret, but non has been installed.

Special equipment provided for the internal security role includes a barricade-clearing device or dozer blade, sirens, loudspeakers, spotlights and smoke or CS agent dischargers. There is also an unusual semi-automatic system located over each wheel station to extinguish fires. Other optional equipment includes extra radios, run-flat tyres, a front-mounted winch, and night vision devices.

The Spanish Marines operate the BLR while more are employed by various Spanish police and para-military forces operating in rural areas. Export sales have been made to Ecuador.

Although no BLR variants have been produced to date it has been proposed that the usual command and ambulance models could be readily produced. Production of the BLR has now ceased.

Specifications:
Property Value
Number of drive wheels
4
Number of wheels
4
Crew
1
Troops
12
Weight (kg)
12000
Length (mm)
5650
Width (mm)
2500
Height (mm)
2000
Main weapon caliber (mm)
12.7
Engine power output (h.p.)
210
Max. road speed (km/h)
83
Max. road range (km)
570
Gradient (%)
60
Side slope (%)
30
Vertical obstacle (mm)
300
Fording depth (mm)
1100



BLR quantities:
Country Qnt
EQUADOR EQUADOR
5
SPAIN SPAIN
50
Qnt:
55

Last Contracts:
Qnt Customer Value Add Date
(Close Date)
Unit cost
15
EQUADOR
$1.500.000
Feb 2003
(Jun 2004)
$100,000
Average Unit Cost:
$100,000
