Designation:

K1A1

Info
Manufacturer: Rotem Company, Technical Research Institute
Product type: Armoured Vehicles
Name: Main battle tank

Hyundai has developed the K1 series of vehicles, which includes the K1A1 120 mm main battle tank, the K1105 mm main battle tank, K1 ARV armoured recovery vehicle, and the K1 AVLB Armoured Vehicle Launch Bridge. The vehicles are built at Hyundai Precision and Industry Company Ltd (HDPIC) automated production facility at ChangWon.

The first two prototypes of the K1A1 successfully completed operational tests in 1997 and the tank has been selected to enter service with Republic of Korea Army.

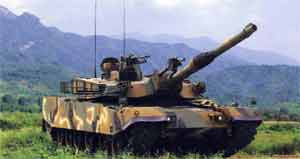

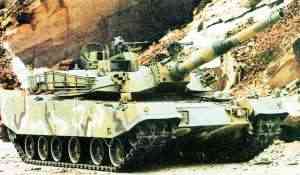

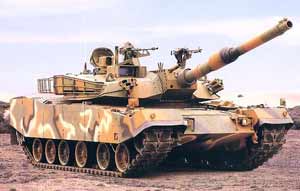

K1A1 MAIN BATTLE TANK

The K1A1 is an upgraded version of the K1 MBT. Its firing range is enhanced by a 120 mm M256 smoothbore gun, together with an improved gun and turret drive system. The M256 gun is also installed on the US M1A1/2 main battle tanks. A new ballistic computer for 120 mm munitions has higher processing capacity and speed.

Samsung Electronics, now Samsung Thomson-CSF are providing the fire control system including the Korean Commander's Panoramic Sight (KCPS) which includes a thermal imager with 288 x 4 focal plane array, KGPS gunner’s sight with thermal imager, eyesafe laser rangefinder and dual field of view day TV camera and KBCS ballistic fire control computer.

The race ring turret bearing provides improved sealing for fording and turret slewing characteristics. The fire suppression system has been equipped with a thermal wire fire sensor in the engine bay.

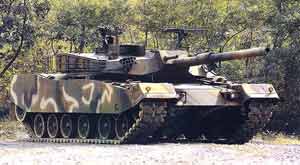

K1 MAIN BATTLE TANK

The K1 has been operational in the RoK Army since 1986 and is known as the Republic of Korea Indigenous Tank or ROKIT. Following early design work based on U.S M1 technology, the K1 tank was designed and produced by Korea. The manoeuvrability of the tank is optimised for the varied geographical features of Korea, which include mountainous terrain, jungle, paddy fields and swamp.

The main gun is a 105 mm rifled high velocity cannon with a coaxial 7.62 mm machine gun. The commander's station is equipped with a 50 calibre machine gun and the loader's station with a 7.62 mm machine gun. The turret slews at 750 mil/second and elevates and depresses at 400 mils/second.

The commander's panoramic sight has three modes of operation: align with the main armament, independent tracking and gunner override. The commander has the option of handing off the target to the gunner or of slaving the gun to the commander's sight and initiating the fire. The K1 has demonstrated a first round hit probability of greater than 90% when firing on the move at a moving target.

The Raytheon Gunner's Primary Sight Subsystem (GPSS) is stabilised in two axes and includes a thermal imager and laser rangefinder. The gunner's ballistic computer automatically downloads crosswind data, vehicle cant, azimuth tracking rate and range. The gunner manually inputs data for air pressure, air temperature, barrel wear, barrel droop and ammunition type.

PROPULSION

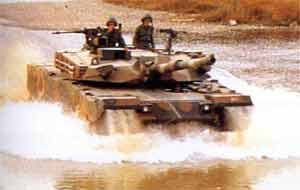

The Kl is equipped with a turbo-charged 1200 hp diesel engine providing a power to weight ratio of 23.5 hp/ton. The transmission has a planetary gear train and a hydrodynamic torque converter. In high gear, the Kl can attain a maximum road speed of approximately 65 km/h. The low ground pressure of 0.87kg/cm2 enables it to successfully manoeuvre in sodden or sandy terrain.

The Kl has hydro-pneumatic suspension and torsion bar springs. The suspension system also provides vehicle attitude control or "kneeling" capability, which increases the main gun depression angle to a maximum of minus 10 degrees.

K1 FAMILY OF VEHICLES

The Kl Armoured Recovery Vehicle has a crane system with the ability to lift up to 25 tonnes, while the main winch system is capable of towing a maximum of 70 tonnes with a guide pulley.

The Kl Armoured Vehicle Launched Bridge can launch and retrieve its 22 m long bridge to span gaps up to 20.5 m, allowing a 60 ton (MLC 66) vehicle to cross. It takes only 3 to 5 minutes for launching and 10 minutes for retrieving its bridge.

The Mine Clearing Roller System can be installed to detect and detonate land mines. It is capable of clearing pressure mines at a rate of 16 km/h.

Specifications:
Property Value
Crew
4
Length (mm)
9710
Width (mm)
3590
Height (mm)
2250
Ground clearance (mm)
460
Max. road speed (km/h)
65
Max. road range (km)
500
Gradient (%)
60
Side slope (%)
30
Vertical obstacle (mm)
1000
Trench (mm)
2740
Fording depth (mm)
2200
Ground pressure (kg/sm2)
0.9
Engine power output (h.p.)
1200
Number of forward gears
4
Number of reverse gears
2
Thermal imaging camera
3
Main weapon caliber (mm)
120
Elevation (degree)
20
Depression (degree)
-10
Auxiliary gun calibre (mm)
7.62
Auxiliary gun calibre (mm)
7.62
Number of smoke grenade launchers
12


Has folowing part:
Total Amount
KBCS (Ballistic computer)
1
KCPS (Panoramic periscope)
1
KGPS (Gunner's sight)
1
MB871 Ka-501 (Diesel engine)
1
T 156 (Track chain)
2
