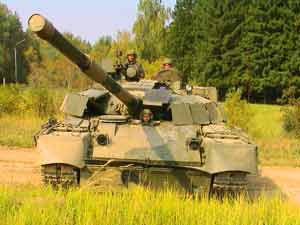

Designation:

T-80B

Info
Manufacturer: JSC Omsk Transport Engineering Plant - Omsktransmash
Product type: Armoured Vehicles
Name: Main battle tank

T-80 is accepted on arms in a 1976. For the first time in the world it(he) is equipped with gasturbodrive. On the first series T-80 there was GTD-1000 by power 1000 hp. Seconds, on T-80B - GTD- 1000TF of the same power, and on T-80U - GTD- 1250. The high battle(dashing) qualities T-80 for want of practically to lowest battle(dashing) mass in main are reached due to dense arrangement. The branch of management is in a forward part of tank, battle(dashing) with a tower - in the middle, motor-transmission - in a forage. T-80 is armed with 125-mm smoothbor gun, D-81 or 2A46M-1 gun, stabilized in two planes, (on T-80U and T-80B) with coupled 7.62-mm machine gun PKT; 12.7-mm AD machine-gun complex «Rock» on commanders sight, complex of a guard from controlled arms and system of start-up smoke grenades «Cloud». The complex of arms also includes a sight - range finder, night sight and loading mechanism. The tanks T-80B have received a guided missiles complex «Kobra», and T-80U - complex «Reflex». The loading mechanism is borrowed at T-64. Into a control system of a light T-80B enter a laser sight - range finder, ballistic calculator, stabilizer of arms, package of gauges inspecting all important information (a velocity of a wind, roll and velocity of the tank, course angle of the purpose etc.). The management of a fire on T-80U is duplicated. The guns 2A46M and A-1 (T-80B and U) are made with more rigid requests to a trunk, which is supplied with a metal heat-shielding casing(cover) defending it from external effects (solar rays, rain) and reducing a sag for want of heat. The greatest aim distances of shooting for T-80B underbarrel and cumulative shells - 4000 m, demolition - 5000 (with the help of of side level - 10000 m). With a night sight TPNK-49 in a foreground they reach(achieve) 1300 and in passive - 850 m. The complex «Reflex» with induction of rockets on a laser ray allows to start them on any velocities of the tank. T-80 is equipped with gears of night vision.

For orientation for want of of bad visibility and under water is present gyroscopic coursefinder. The tank T-80 is protected by the combined multilayer reservation, and also as T-80BV, and built-in complex of a dynamic guard. The securities of the tank from cumulative shells promote screens on sides of tank (steel sheets on a rubber apron), tower and before a nose. T-80 has a system of a collective guard from the weapon of a mass defeat and automatic fire-prevention equipment. The power plant of the tank consists from GTD-1000TF with the two-cascade compressor, force turbine and adjusted(adjustable) by a means of the force turbine. The suspension is torsional with hydroshock-absorbers on 1 -, 2- and 6-m knots of the suspension roles. Track with rubbermetal hinge.

Specifications:
Property Value
Crew
3
Weight (kg)
42500
Length (mm)
9900
Height (mm)
2202
Max. road speed (km/h)
70
Average speed on dry soil road (km/h)
48
Max. road range (km)
335
Depth of fording, without preparation (mm)
1800
Gradient (%)
63
Side slope (%)
46
Vertical obstacle (mm)
1000
Trench (mm)
2850
Engine power output (h.p.)
1000
Number of forward gears
5
Number of reverse gears
1
Main weapon caliber (mm)
125
AA gun caliber (mm)
12.7
Auxiliary gun calibre (mm)
7.62
Ammunition of the main gun
36
Ammunition of AA gun
500
Ammunition of the auxiliary gun
1250
Elevation (degree)
14
Depression (degree)
-5
Planes of gun stabilization
2


Has folowing part:
Total Amount
2A46M-1 (Gun)
1
9K112Kobra/AT-8 Songster (Anti-tank guided missile launcher)
1
Relikt (Explosive reactive armour)
1
