Designation:

WASP

Info
Manufactured by: BAE Systems Land Systems OMC
Type: Auxiliary Vehicles
Name: Patrol Vehicle

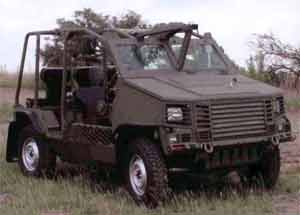

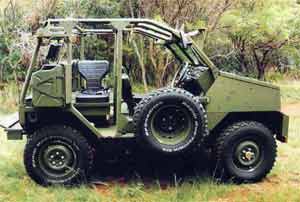

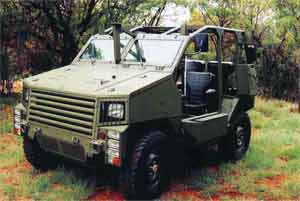

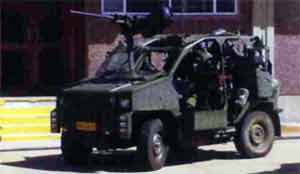

The Wasp Rapid Deployment Reconnaissance Vehicle (RDRV) was developed by Alvis OMC and is aimed at satisfying requirements for a light airborne rapid deployment vehicle.

The Wasp is compact, light and performs exceptionally. The design allows for customisation to specific clients' needs and could therefore fulfil the requirements of other special and airborne forces.

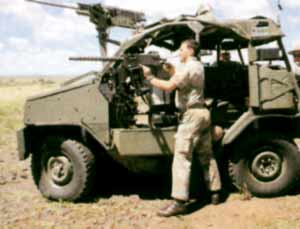

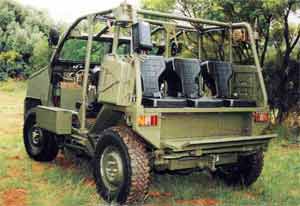

The Alvis OMC Wasp can be used in various roles including reconnaissance, troop carrier, fire support, light strike actions, light and medium weapons deployment, and casualty evacuation.

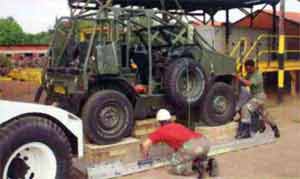

Although primarily designed to be deployed by air-drop or air landing, the Wasp can alternatively be deployed over long distances under its own power, or be transported by sea or air freight.

The Alvis OMC Wasp is available in two variants:

The RDRV is the primary vehicle for employment by special forces and reconnaissance units. Rapid Deployment Logistics Vehicle (RDLV), its main role is that of a logistic vehicle for employment on and around the Drop Zone (DZ).

Specifications
Property
Value
Weight (kg)
2500
Length (mm)
3600
Width (mm)
2260
Height (mm)
1970
Wheelbase (mm)
2530
Engine power output (h.p.)
140
Maximum torque (Nm)
343
Max. road speed (km/h)
115
Number of forward gears
5
Number of wheels
4
Number of drive wheels
4


Has folowing part:
Part
Amount
531OHV (Diesel engine)
1
? (Transmission)
1

WASP Quantities:
Country
Quantity
SOUTH AFRICA SOUTH AFRICA
25
Total:
25

WASP
WASP
WASP
WASP
WASP
WASP
WASP
WASP
