Designation:

FENNEK

Info
Manufacturer: Krauss-Maffei Wegmann GmbH & Co.KG - KMW
Product type: Armoured Vehicles
Name: Reconnaissance Vehicle

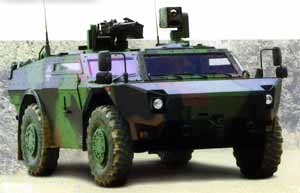

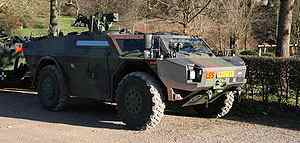

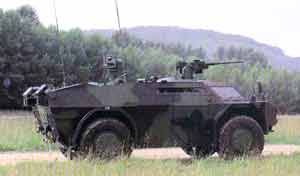

The Fennek 4x4 reconnaissance vehicle is a further development of the Multi-Purpose Carrier (MPC) originally developed by Dutch company SP aerospace and vehicle systems as a private venture.

Following extensive trials with prototype vehicles, the ARGE Fennek consortium - comprising SP aerospace and vehicle systems and Krauss-Maffei Wegmann of Germany - was awarded a contract to produce 612 Fenneks.

The German Army has ordered 202 vehicles and the Netherlands 410; the first Fenneks were delivered in 2003. There are two final assembly lines, one in Germany and one in the Netherlands.

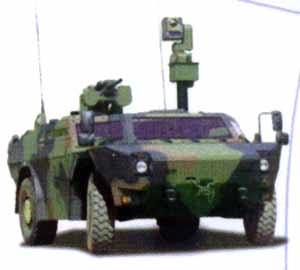

The baseline Fennek is optimised for reconnaissance and is provided with a retractable mast-mounted sensor pod that contains day/thermal optics and a laser rangefinder.

A land navigation system and extensive communications equipment is installed in the vehicle and this allows information to be relayed in real time. The sensor package is provided by Rheinmetall Defence Electronics and, if required, the sensor head can be removed from the vehicle and deployed up to 40m away.

German vehicles are armed with 40mm automatic grenade launchers, while 12.7mm machine guns are installed on the Dutch ones.

The Fennek's hull is of all-welded steel armour, which protects the crew against 7.62mm armour-piercing attack and shell splinters.

A wide range of equipment is fitted as standard, including a rear-mounted camera, a nuclear, biological and chemical defensive system, a winch, run-flat tyres, an air-conditioning system and a fire-detection and -suppression system.

Both countries will also deploy specialised versions. Germany is testing an artillery- observation vehicle with 168 units expected to be procured. The Netherlands will also field anti-tank and air defence versions. The former will be fitted with the Gill medium-range antitank missile.

Operational Characteristics

The FENNEK is a light, armoured, four-wheel-drive reconnaissance vehicle which is operated by a three-man crew consisting of commander, driver and radio operator/observer.

It offers space for the necessary extensive on-board equipment and rations.

A scout party equipped with this vehicle is able to operate independently over a period of five days. Armour and NBC protection ensure optimum crew safety. The FENNEK's airportability and transportability by rail, truck or ship makes for easy and rapid extension of its deployment area.

Mobility

The FENNEK's benefits lie in its high on- and off-road mobility, which is primarily the result of an engine technology that reflects the latest state of the art. The powerpack features a fully automatic transmission and transfer box. Selectable four-wheel drive and limited-slip differential are equally standard equipment. The H layout of the driveline allows a very low profile, with the power being transmitted to the wheel gears via angular gearboxes. The engine meets the exhaust emission values specified by Euronorm III.

The vehicle is capable of negotiating 60% forward and 35% side slopes and its turning circle of less than 13.0 m and fordability to a depth of more than 1 m additionally make for the vehicle's outstanding cross-country mobility. A further plus for the FENNEK is its tyre pressure control system which allows the driver to adjust tyre pressure on the move as required by terrain conditions and situation.

Driver's Station

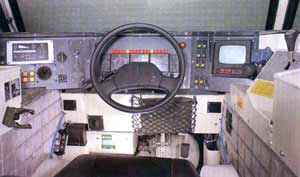

The convenient arrangement of the windscreen and side windows and a seat positioned far forward provide the driver with an excellent field of view of more than 180. The rearview camera mounted at the back of the vehicle and the monitor integrated in the instrument panel provide the driver with the necessary assistance for rapid evasive and skilful manoeuvring of the vehicle. The use of image intensifier goggles makes it easier for the driver to operate the vehicle safely and precisely even by night. The control and display concept was developed in accordance with ergonomic requirements making it easy for the driver to handle the large number of vehicle functions.

The fire warning and extinguishing system is triggered automatically in case of fire. In emergencies, the driver can activate the fire extinguishing system in the powerpack compartment from his station.

Additionally, the FENNEK is equipped with a cable winch for recovery operations.

Commander's and Radio Operator/ Observer's Stations

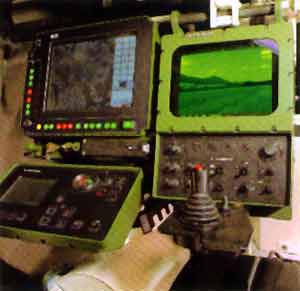

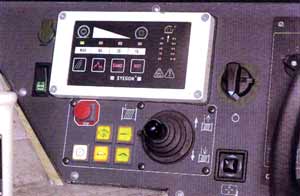

The key items of equipment at the commander's and radio operator/ observer's stations include the observation and reconnaissance equipment, command and control equipment, central system control panel, an electrically or mechanically controlled and fired gun mount with night sight (optional) as well as an HF and VHF radio system. The crew members communicate through an intercom system.

Command and Control Equipment

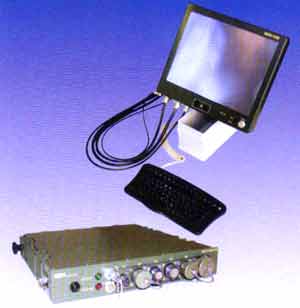

The command and control equipment (FuWES) integrates the reconnaissance vehicles in the C3 network. The FuWES consists of the Commander IV (integrated version) computer and includes a 15-inch touchscreen display and a keyboard. For orientation in cross-country terrain, digitized maps are used showing the vehicle's own position, a target position as well as the current battlefield environment. This information is continuously updated between vehicle and command post via data radio link (HF and VHF radios). When configuring the vehicle system, special emphasis was placed on universal interfaces so that alternative hardware and software can be used.

Gun Mount / Armament

For self-defence, the reconnaissance vehicle is equipped with a type of armament that can be operated under armour and NBC protection. Depending on vehicle configuration, the electrically controlled gun mount is designed to carry a 40 mm automatic grenade launcher (AGL), a .50 cal MG or a 7.62 cal MG. The sighting system consists of a periscope derived from the PERI Z 17 currently in service. As an option, the periscope can be upgraded with additional plug-in modules, such as an image intensifies.

Observation and Reconnaissance Equipment

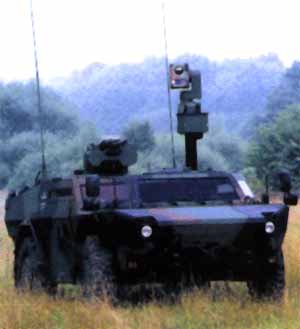

To ensure a high level of reconnaissance efficiency, the FENNEK is fitted with observation equipment consisting of a thermal imager, a CCD day vision camera and a laser range finder. The observation equipment is packaged in a sensor head mounted on an extendible mast. The sensor head can be controlled in azimuth and elevation and raised to a height of 1.5 m above the vehicle roof, i.e. 3.29 m above ground. For observation from a concealed position, the sensor head can be tripod-mounted at an exposed location for "remote operation" up to 40 m from the vehicles. Even then, it is still operated from the crew stations in the vehicle.

The use of a hybrid navigation system consisting of the inertial reference unit and GPS (Global Positioning System) makes it possible to determine at a high degree of accuracy the vehicle's own position and north. Targets are acquired by means of the laser range finder as part of the observation and reconnaissance equipment as well as the line-of-sight azimuth and elevation angle measuring equipment. Along with the navigation system, it is thus possible to precisely determine the position coordinates of reconnoitred objects.

Seats

The commander's and the radio operator/observer's stations are fitted with suitable seats. They were optimized to meet ergonomic requirements and are designed in accordance with German road licensing regulations. Seat height adjustment operated by an electric motor permits both under armour and out-the-hatch observation. Additionally, the radio operator/ observer's seat can be swivelled 360 degrees (commander's seat: 45).

In the event of a sudden danger, the observer can engage the quick lowering mechanism and withdraw into the fighting compartment within a few seconds. During rest phases, it is possible to relax under the raised seat.

Protection

Vehicle and crew are protected as follows:

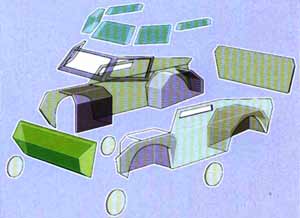

  • Add-on all-round protection against 7.62 mm AP rounds. The add-on armour technology makes it possible to use different types of protection materials to meet higher demands (e.g. 7.62 Dragunov).

  • Crew compartment protection against AP mines.

  • NBC protection combined with an air-conditioning system for the entire crew compartment. Special exhaust ducting to minimize the IR signature.

  • Automatically and manually released firewarning and extinguishing system in the powerpack compartment for crew protection.



Specifications:
Property Value
Length (mm)
5580
Width (mm)
2550
Height (mm)
2290
Weight (kg)
11000
Main weapon caliber (mm)
40
Ammunition of the main gun
64
Elevation (degree)
40
Depression (degree)
-7
Engine power output (h.p.)
240
Max. road speed (km/h)
112
Gradient (%)
60
Side slope (%)
35
Number of wheels
4
Number of drive wheels
4
Cross-country cruising range (km)
460
Max. road range (km)
1000


Has folowing part:
Total Amount
? (Weapon station)
1

FENNEK quantities:
Country Qnt
GERMANY GERMANY
212
QATAR QATAR
32
THE NETHERLANDS THE NETHERLANDS
410
Qnt:
654

Last Contracts:
Qnt Customer Value Add Date
(Close Date)
Unit cost
32
QATAR

Oct 2014
(Dec 2015)

10
GERMANY
$45.000.000
Jan 2008
(Dec 2009)
$4,500,000
Average Unit Cost:
$4,500,000
