Designation:

Type 84

Info
Manufacturer: Poly Technologies, Inc.
Product type: Armoured Vehicles
Name: Armoured vehicle-launched bridge

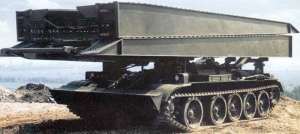

The Type 84 armoured vehicle-launched bridge is essentially a Type 69 MBT with its turret removed, fitted with a bridge-launching mechanism similiar to that on the German Leopard 1 Biber system. When opened out, the bridge, which is launched over the front of the vehicle, is 18 m long, can span gaps of up to 16m and take tracked and wheeled vehicles weighing up to 40 tonnes.

Specifications:
Property Value
Weight (kg)
38500
Crew
3
Length (mm)
9879
Width (mm)
3270
Height (mm)
2978
Ground clearance (mm)
350
Main weapon caliber (mm)
7.62
Ammunition of the main gun
1500
Engine power output (h.p.)
580
Max. road speed (km/h)
50
Max. road range (km)
365
Gradient (%)
50
Side slope (%)
25
Bridge length (mm)
18000
Bridge width (mm)
3200
Carrying capacity of the bridge (kg)
40000


Has folowing part:
Total Amount
Type 12150L (Diesel engine)
1
