Designation:

XM25

Info
Manufacturer: Alliant Techsystems Inc. - ATK
Product type: Weapons & Weapon Systems
Name: Light gun

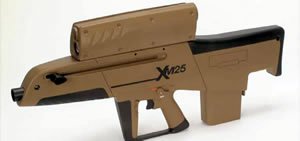

XM25 Air-Burst Assault Weapon.

The XM25 air-burst assault weapon is a next-generation, semi-automatic weapon system designed for effectiveness against enemies protected by walls, dug into foxholes, or hidden in hard-to-reach places.

The XM25 provides the soldier with a 300 to 500% increase in hit probability to defeat point, area, and defilade targets out to 500 meters. The weapon features revolutionary high-explosive, air-burst ammunition programmed by the weapon's target acquisition/fire control system.

The XM25 integrates ballistics computation in the full-solution Target Acquisition/Fire Control (TA/FC) system. The soldier places the aim point on target and activates the laser rangefinder. The fire control system provides an adjusted aim point. The soldier places the adjusted aim point on target and pulls the trigger. Target information is communicated to the chambered 25mm round. As the round speeds down range, it measures the distance traveled and bursts precisely at the distance preprogrammed.

The XM25 precisely delivers air-bursting munitions in all conditions, including MOUT and complex terrain. It is five times more lethal at the M203 maximum range and continues to provide lethality well beyond the M203's maximum ability. The system is designed for optimum performance at 300 meters but will perform to 500 meters and beyond.

It includes five different types of ammunition:

  • Thermobaric

  • Flechette

  • Training

  • High Explosive Air Bursting

  • Non-Lethal

Specifications:
Property Value
Main weapon caliber (mm)
25
Firing range (m)
500
