Designation:

BTR-70DI

Info
Manufacturer: 346th Mykolayiv Mechanical Armor Repair Plant
Product type: Armoured Vehicles
Name: Modernization of the vehicle

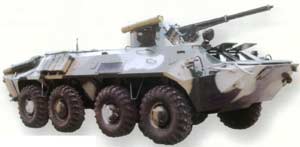

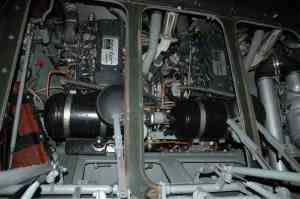

The BTR-70Di “DEFENDER” Armored Personnel Carrier is combat, wheeled, floating, armored vehicle, with all-wheel drive, equipped with two powerful diesel engines FPT “Iveco” Tector (EURO-3). It possesses high dynamic qualities, high cross-country capacity and motion smoothness. The vehicle is capable to follow tanks and surmount trenches, ditches and water obstacles on run.

The BTR-70Di “DEFENDER” Armored Personnel Carrier is intended for transportation of personnel of mechanized units and for fire cover for them. The Armored Personnel Carrier can be equipped with various types of arms.

Specifications:
Property Value
Weight (kg)
12200
Crew
3
Troops
7
Length (mm)
7535
Width (mm)
2800
Height (mm)
2480
Ground clearance (mm)
475
Max. road speed (km/h)
90
Max. water speed (km/h)
10
Max. road range (km)
800


Has folowing part:
Total Amount
BUG (Weapon station)
1
INGUL (Weapon station)
1
