Designation:

Zubr

Info
Manufacturer: AMZ-Kutno Sp. z.o.o.
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

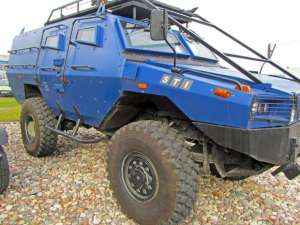

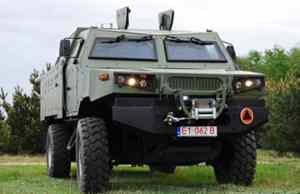

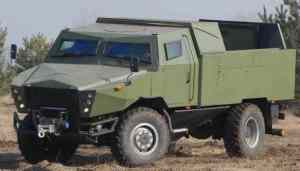

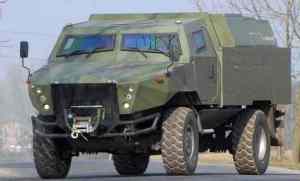

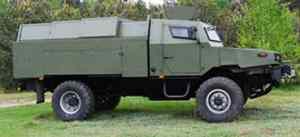

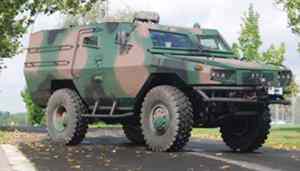

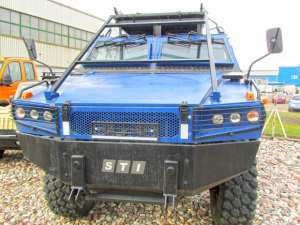

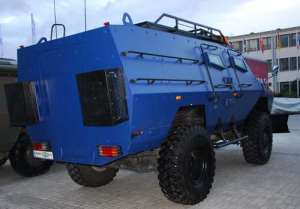

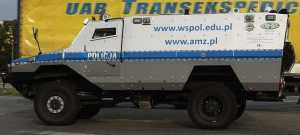

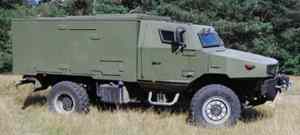

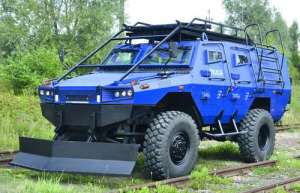

The Zubr (bison) mine resistant ambush protected vehicle was developed by Polish AMZ-Kutno as a private venture. This vehicle was revealed in 2008.

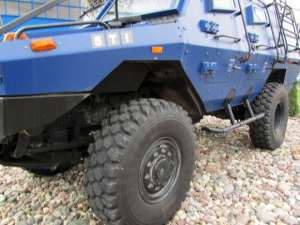

The Zubr MRAP has a V-shaped hull for protection against landmines and IEDs. It is claimed that this armored vehicle can withstand 8 kg mine blast. All-round protection is against 7.62-mm armor piercing rounds. The Zubr is armed with remotely controlled weapon station.

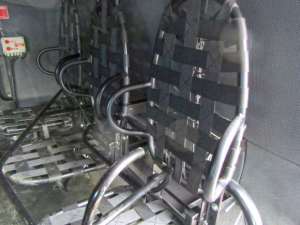

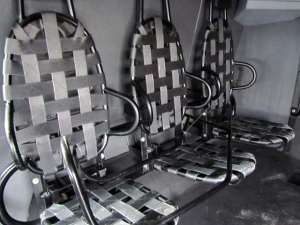

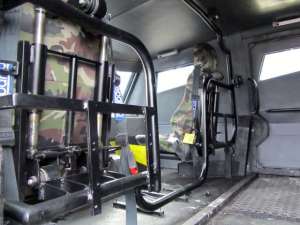

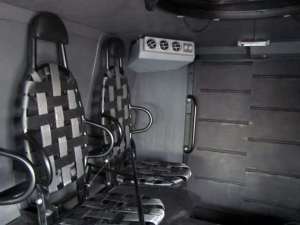

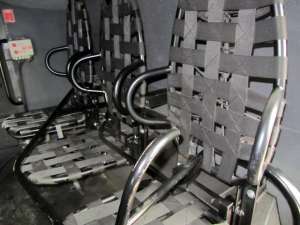

This Polish MRAP can carry 10 fully equipped troops. Vehicle has a payload capacity of 2 000 - 5 000 kg. It can also tow a 1 500 kg capacity trailer.

The Zubr MRAP is based on Iveco EuroCargo 4x4 truck, which is license-produced in Poland. Vehicle is powered by Iveco Tector diesel engine, developing 275 hp. Vehicle can be airlifted by the C-130 Hercules.

Variants

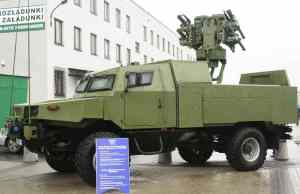

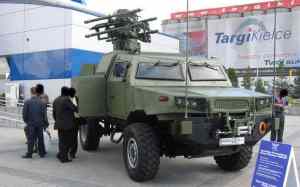

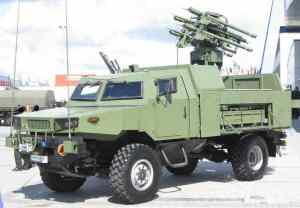

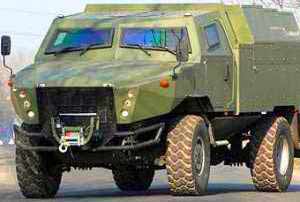

  • Zubr-P (Poprad) air defense vehicle, fitted with Grom missiles

  • Zubr-MMSR, air surveillance vehicle, equipped with N-26 radar

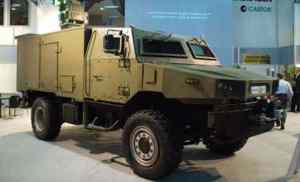

  • Zubr-WD command vehicle, fitted with five workstations

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Length (mm)
6950
Width (mm)
2450
Height (mm)
2650
Weight (kg)
15000
Max. road speed (km/h)
100
Max. road range (km)
600
Crew
10
Engine power output (h.p.)
275
Fording depth (mm)
700
Wheelbase (mm)
3240
