Designation:

TUR

Info
Manufacturer: AMZ-Kutno Sp. z.o.o.
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

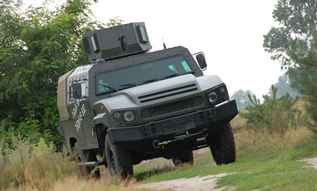

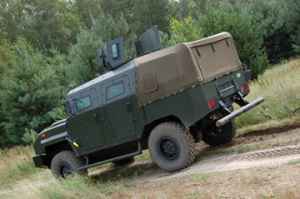

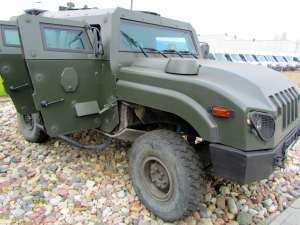

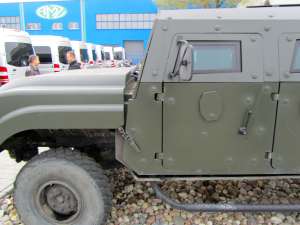

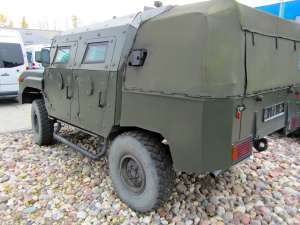

Our TUR light armoured vehicle was procured to provide better protection for soldiers during missions. This vehicle has great cross-country mobility and is based on the SCAM chassis.

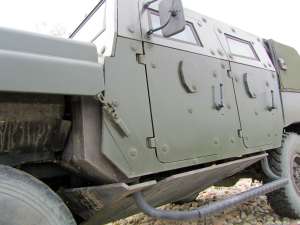

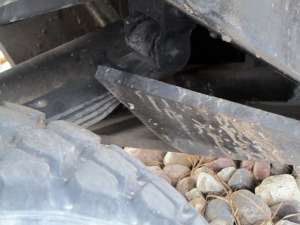

It offers protection against infantry fire and artillery splinters (armouring against level 2 STANAG 4569 and optional level 3 STANAG 4569). A V-shaped deflector on the underbody deflects the explosion pressure of a mine round the bodywork and even offers the crew inside protection against 6kg TNT mines (STANAG 2a and 2b 4569 norm).

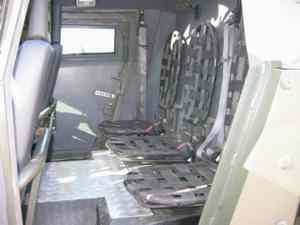

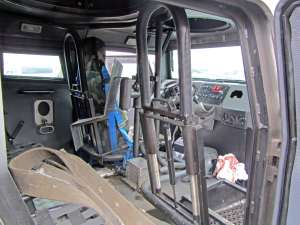

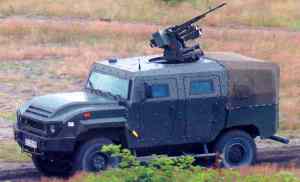

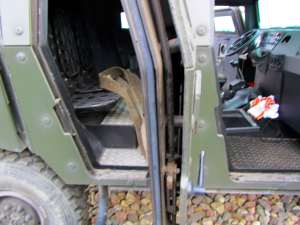

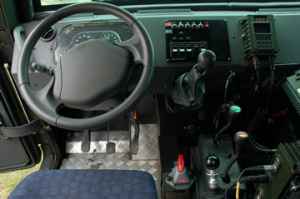

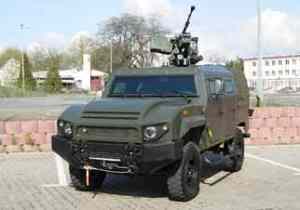

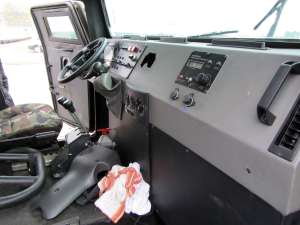

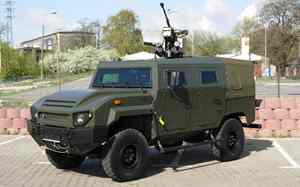

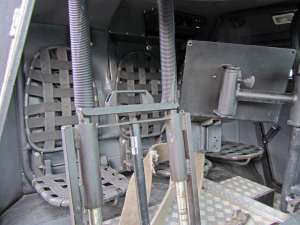

The TUR light armoured vehicle can accommodate five soldiers and is equipped with air conditioning, heating, a run-flat tyre system, ABS, a reversing camera, a GPS navigation system and radio. The roof-mounted gun can be operated from inside the armour and the mount can be used for a machine gun. The IVECO engine provides 166hp and can power the 6,200kg weight vehicle to a speed of 110km/h.

Specifications:
Property Value
Height (mm)
2350
Length (mm)
4870
Track (mm)
1700
Wheelbase (mm)
2800
Payload (kg)
1000
Weight (kg)
6200
Max. road range (km)
600
Engine cylinder volume (l)
166
Crew
5
Number of drive wheels
4
Number of wheels
4
Width (mm)
2230
Fording depth (mm)
700
