Designation:

Xtream

Info
Manufacturer: Carmor Ltd.
Product type: Armoured Vehicles
Name: Armoured car

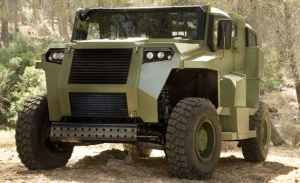

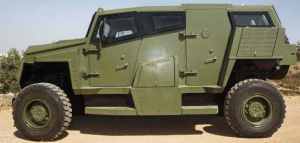

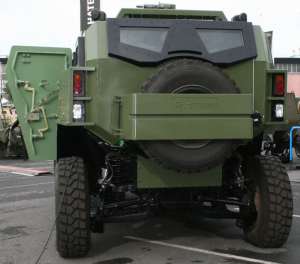

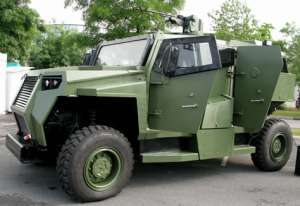

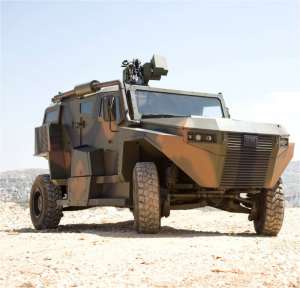

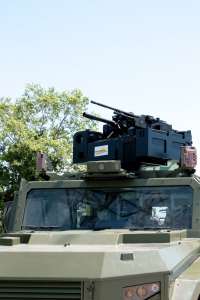

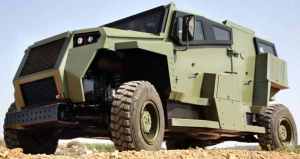

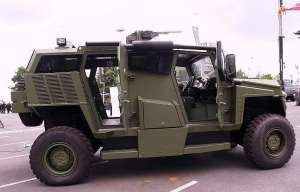

With extreme terrain mobility & ultimate urban maneuverability - it turns on a dime - Xtream is the ultimate all-purpose armored vehicle.

An 8-man, 9- or 16-ton APC/AFV with up to STANAG 3, 4 and anti-RPG protection and unique rear-stearing, the Xtream is perfect for Special Operation Forces and all battle missions.

Hatehof, a specialist vehicle designer and manufacturer from Israel is introducing a range of highly protected vehicles at Eurosatory. The company is already producing the latest wheeled armored vehicle operated by the Israel Defense Forces – the 8.6 ton Wolf, under cooperation with Rafael. The heavy version of the Xtream is powered by a Cummins ISBE 275 turbo diesel engine coupled to an Allison 3000 automatic transmission and Axeltech transfer case. high mobility all terrain vehicle, capable of fording 1.1 meters of water, negotiating 36° side slopes and 60% gradient.

It is designed to carry 8 soldiers. It comes in a 9 or 16 ton configurations, the heavier is protected to STANAG 3, 4 and anti-RPG protection levels. Xtream is equipped with front and rear steering, offering a turning radius of only 6.4 meters, uncommon for vehicles of this weight class. The vehicle weighs 11,300 kg designed to provide protection level of STANAG 3. Adding 2.5 tons more, the Xtream can be protected with reactive tiles, against RPGs, and still carry over two tons of useful payload. Xtream is provided in medium and 'light', air mobile and semi-amphibious vehicles. The lighter version weighs 9200 kg (GVW), and carries a payload of 2,750 kg. Its protection level is lower, but mobility is improved, particularly turning radius (5.1 meters with front and aft steering activated) and 38° side slope negotiation capability. It is powered by a Cummins 6.7 liter diesel coupled to a 6 gear automatic transmission and Magna power train.

Specifications:
Property Value
Weight (kg)
16000
Number of wheels
4
Number of drive wheels
4
Crew
9
Ground clearance (mm)
445
Length (mm)
5340
Height (mm)
2490
Width (mm)
2510
Max. road range (km)
700
Gradient (%)
60
Side slope (%)
36
Engine power output (h.p.)
271
