Designation:

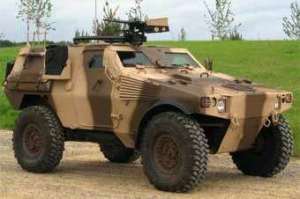

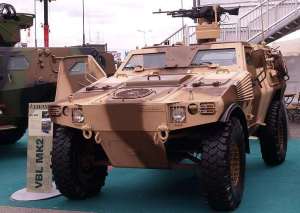

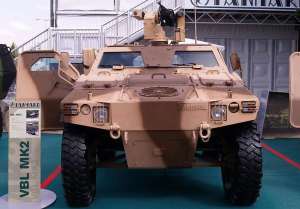

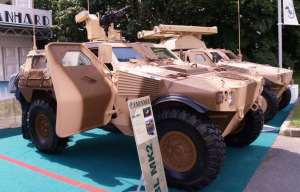

V.B.L. Mk2

Info
Manufactured by: Societe de Constructions Panhard et Levassor
Type: Armoured Vehicles
Name: Wheeled armoured personnel carrier



The Mk2 version of the VBL benefits from many improvements in relation to previous models: the vehicle is significantly more powerful thanks to a 125 h.p. Steyr engine, whilst its all-terrain mobility has also been enhanced by a 4-speed ZF automatic gearbox and larger tyres. Centralised tyre inflation also helps to improve the VBL’s mobility over loose terrain, especially sand. The electrical system in the new generation vehicle offers new features such as an onboard diagnostic system.

Furthermore, the VBL Mk2, which retains its amphibious capability, is NRBC-protected.

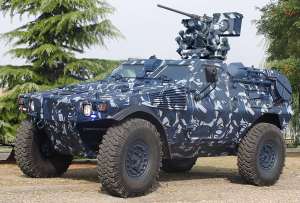

These VBLs are fitted with equipment designed for police vehicles, including a loud speaker system that allows the occupants to address individuals or crowds while remaining protected by the armouring.

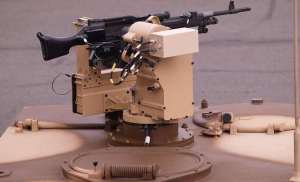

The VBL, which will be used for patrol and surveillance missions, will be equipped with impressive firepower thanks to a remote-controlled cupola capable of operating a 12.7 mm machine gun. This weapon, useable in all conditions and especially at night, will reinforce the VBL’s defensive capabilities. It is worth noting that the Ministry of the Interior is the second Emirates customer to place its trust in Panhard, because the National Guard is already using the VBL. Panhard, which is an historic supplier of armoured vehicles to the Gulf states, has already supplied VBLs to the Sultanate of Oman, the United Arab Emirates and Qatar.

Specifications
Property
Value
Number of wheels
4
Number of drive wheels
4
Engine power output (h.p.)
125
Max. road speed (km/h)
95
Weight (kg)
4000
Payload (kg)
900
Max. road range (km)
800
Crew
4




V.B.L. Mk2
V.B.L. Mk2
V.B.L. Mk2
V.B.L. Mk2
V.B.L. Mk2
V.B.L. Mk2
