Designation:

HIGUARD

Info
Manufacturer: Renault Trucks Defence - RTD
Product type: Auxiliary Vehicles
Name: Mine protected carrier

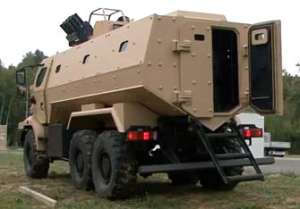

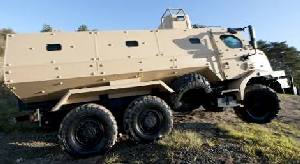

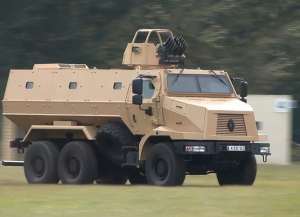

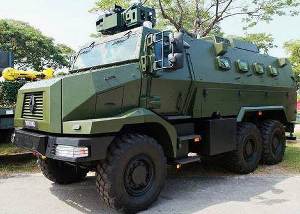

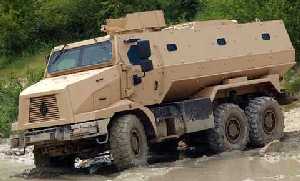

The HIGUARD (MRAP) vehicle is derived from a Sherpa medium 6x6. This vehicle can provide very high levels of protection in certain configurations and can transport up to twelve fully equipped personnel. Its dissuasive silhouette makes it highly suitable to law enforcement units.

Renault Trucks Defense's HIGUARD combines the excellent off-road mobility of the Sherpa Medium 6x6 tactical vehicle with the very high level of protection of its specially armoured cab (ballistic, mine and IED protection).

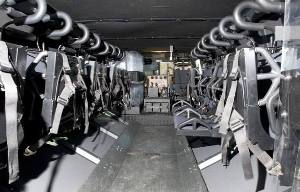

The HIGUARD (MRAP) is ideally suited for tactical missions such as troop transport in asymmetric combat areas. Its large volume and payload accommodates up to 12 soldiers with their equipments. The HIGUARD (MRAP) is also fitted for a roof mounted weapon system.

ARMOR

  • Armoured cab as per STANAG 4569

OPTIONS

Confort

  • Right hand drive

  • RAir conditioning, radio Intercom system

  • RCold starting (-32 C)

Mobility

  • RCentral Tyre Inflation System (CTIS)

  • RRun-flat tyres

  • RAutomatic gearbox ZF 6HP602

  • RFull time 6x6

  • RFront electric winch

  • RFront blade - Push-bar

Systems

  • Self defence weapon systems (5.56 / 7.62 / 12.7 mm manned or remotely operated)

  • RFire extinguishing system (engine, wheels)

  • RLight bar (Police) with siren Public adress

  • RFiring ports

  • RFume extractor

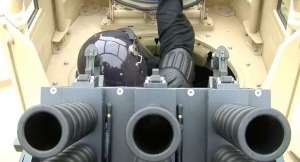

  • RSmoke grenade launcher

  • RAlternator 300 A

  • RAny specific customer weapon or mission system

Specifications:
Property Value
Number of wheels
6
Number of drive wheels
6
Weight (kg)
20000
Payload (kg)
4000
Length (mm)
7000
Width (mm)
2500
Height (mm)
3000
Wheelbase (mm)
4500
Ground clearance (mm)
490
Crew
2
Troops
10
Engine power output (h.p.)
340
Maximum torque (Nm)
1306
Max. road speed (km/h)
90
Max. road range (km)
850
Fuel capacity (l)
310
Fording depth (mm)
1200
Vertical obstacle (mm)
500
Trench (mm)
900
Gradient (%)
60
Side slope (%)
30


Has folowing part:
Total Amount
9S1310 (Transmission)
1
MD-7 (Diesel engine)
1

HIGUARD quantities:
Country Qnt
QATAR QATAR
5
SINGAPORE SINGAPORE
10
Qnt:
15
