Designation:

CS/VN4

Info
Manufacturer: Poly Technologies, Inc.
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

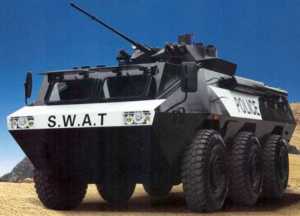

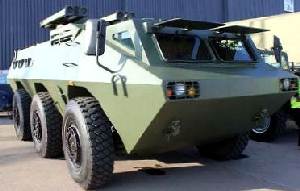

Type CS/VN4 wheeled armoured personnel carrier is a 6x6 all-wheel drive combat vehicle with high cross country ability.

It features high speed and mobility, low fuel consumption, reliable performance, safe and comfortable to drive and ride, meeting the requirement to serialization, standardization and generalization.

Features

  • Great cross-country capability: 6x6 drive, dual lateral independent suspension, inter-axle and wheel differential locks

  • Especially suitable to be used in the tropic, desert, marsh and tableland areas

  • Armour plate welded open type single-man turret of 360° rotation, optional with 5.8 mm, 7.62 mm, 12.7 mm muskets and machine guns.

Specifications:
Property Value
Number of wheels
6
Number of drive wheels
6
Weight (kg)
15000
Crew
2
Troops
10
Length (mm)
6850
Width (mm)
2800
Height (mm)
2110
Wheelbase (mm)
1900
Max. road speed (km/h)
100
Gradient (%)
60
Side slope (%)
30
Trench (mm)
1200
Vertical obstacle (mm)
550
Turning circle radius (mm)
9500
Max. road range (km)
970
