Designation:

RoofPRO-P

Info
Manufacturer: RUAG Land Systems
Product type: Ballistic Protection
Name: Ballistic protection

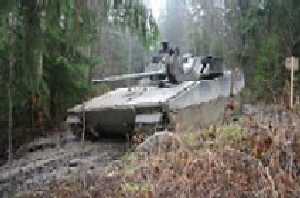

Artillery bomblets are a serious threat for all armoured vehicles - RUAG Land Systems has developed an effective but light roof protection kit against artillery bomblets for armoured vehicles.

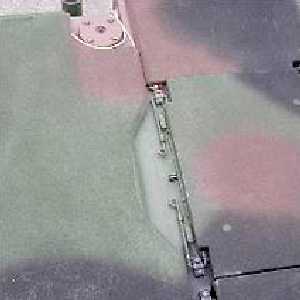

The light-weight protection elements are fixed to the vehicles and can be easily removed again. High-quality material warrants a very good field capability and accessibility.

Performance:

  • Protection against bomblets: < 50 mm diameter

  • Protection effect against artillery fragments: 20 mm diameter

  • Hit angle up to 45° extend version

  • Required armour basis: STANAG 4569 (protection level III) for vehicles with a lower level of protection

  • Fulfils environmental requirements: STANAG 2895 (A1-A3, B1-B3, C0 und C1)

Technical characteristics:

  • Specific surface weight: 43 kg/m2

  • Material thickness 31 mm

  • Integrated anti-slip surface

  • Insensitive to soiling

  • The plates can be assembled and disassembled individually

  • Easy handling

  • Adaptable to every contour and shape

  • Surface can be painted
