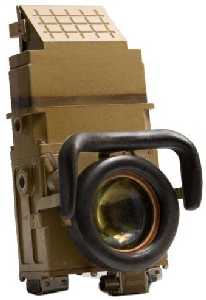

Designation:

TVN-5M

Info
Manufacturer: Izyum Instrument Making Plant
Product type: Vision Devices
Name: Driver's night vision device

The device provides possibility to drive armored vehicles (T-62, T-64, T-72, T-80, T-84, BMP-1, BMP-2, BMP-3 tanks etc.) at night both under ambient lighting conditions from 3×10‑3lux to 5×10‑3lux (in passive mode), and when using an infrared illuminator (in active mode) under ambient lighting less than 3×10-3 lux.

Illumination is also possible under adverse road observation conditions (low atmospheric transparency, low-contrast relief).

During modernization, the image converter of "0" generation was changed to image converter of "2++" generation.

  • Power supply voltage from the on-board DC network: 27 V

  • Power consumption with heating: not more than 95 W

  • Power consumption without heating: not more than 5.5 W

  • Zoom: x10.1

  • Horizontal field of view: not less than 402 degrees

  • Vertical field of view: not less than 30 degrees

  • Resolution limit in the center of the field of view: not less than 40 lines/mm

  • Range of vision of the roadbed in active mode: not less than 150 m

  • Range of vision of the roadbed in passive mode: not less than 450 m

  • Weight: not more than 6 kg
