Designation:

TNPO-115T

Info
Manufacturer: Izyum Instrument Making Plant
Product type: Vision Devices
Name: Vision device

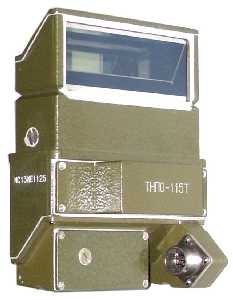

TNPO-115T is a terrain surveillance device with electrical heated protective windows.

Armored vehicles configuration.

  • Angle of the field of view in the horizontal plane: not less than 108 degrees

  • Angle of the field of view in the vertical plane: not less than 29 degrees

  • Upper angle of the field of view in the vertical plane: not less than 9 degrees

  • Bottom angle of the field of view in the vertical plane: not less than 20 degrees

  • Angle of the field of vision in the horizontal plane: not less than 42 degrees

  • Angle of the field of vision in the vertical plane: not less than 5.5 degrees

  • Angle of the binocular field of vision in the horizontal plane: not less than 11 degrees

  • Periscope line-of-sight height: 1146 mm

  • Visual transmittance factor: not less than 0.44

  • Power supply voltage (DC current): 27 V

  • Power consumption: not more than 53 W

  • Weight: not more than 2.8 kg
