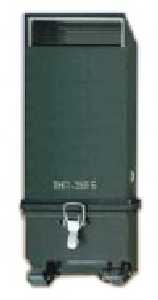

Designation:

TNP-350B

Info
Manufacturer: Izyum Instrument Making Plant
Product type: Vision Devices
Name: Vision device

TNP-350B is a terrain surveillance device and is installed on armored vehicles.

  • Angle of the field of view in the horizontal plane: not less than 42 degrees

  • Angle of the field of view in the vertical plane: not less than 10.5 degrees

  • Upper angle of the field of view in the vertical plane: not less than 5 degrees

  • Bottom angle of the field of view in the vertical plane: not less than 5.5 degrees

  • Angle of the field of vision in the horizontal plane: not less than 25 degrees

in the vertical plane: not less than 3 degrees

  • Angle of the binocular field of vision, degrees, not less than

in the horizontal plane: not less than 7 degrees

  • Periscope line-of-sight height: 350±10 mm

  • Visual transmittance factor: not less than 0.5

  • Overall dimensions: not more than 160×73×407 mm

  • Weight: not more than 5.45 kg
