Designation:

TNPO-168B

Info
Manufacturer: Izyum Instrument Making Plant
Product type: Vision Devices
Name: Vision device

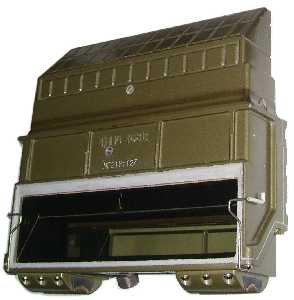

TNPO-168B is a terrain surveillance device with electrical heated protective windows.

Armored vehicles configuration.

  • Angle of the field of view in the horizontal plane: not less than 138 degrees

  • Angle of the field of view in the vertical plane: not less than 31 degrees

  • Upper angle of the field of view in the vertical plane: not less than 15 degrees

  • Bottom angle of the field of view in the vertical plane: not less than 16 degrees

  • Angle of the field of vision in the vertical plane: not less than 6 degrees

  • Angle of the binocular field of vision in the horizontal plane: not less than 32 degrees

  • Periscope line-of-sight height: 1735 mm

  • Visual transmittance factor: not less than 0.45

  • Power supply voltage (DC current): 27 V

  • Power consumption: not more than 184 W

  • Overall dimensions: not more than 267×96×274 mm

  • Weight: not more than 7.5 kg

  • Operating conditions: from -50 to +50
