Designation:

TNPT-3

Info
Manufacturer: Izyum Instrument Making Plant
Product type: Vision Devices
Name: Vision device

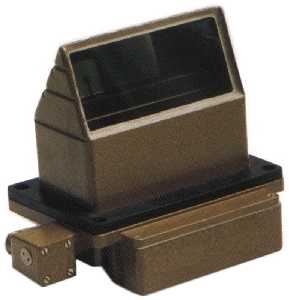

TNPT-3 is a device to assist the tank commander in viewing behind and above the vehicle; it is equipped with electrical heated protective windows.

  • Angle of the field of view in the horizontal plane: not less than 118 degrees

  • Angle of the field of view in the vertical plane: not less than 54 degrees

  • Upper angle of the field of view in the vertical plane: not less than 35 degrees

  • Bottom angle of the field of view in the vertical plane: not less than 19 degrees

  • Angle of the field of vision in the horizontal plane: not less than 45 degrees

  • Angle of the field of vision in the vertical plane: not less than 12 degrees

  • Angle of the binocular field of vision in the horizontal plane: not less than 10 degrees

  • Visual transmittance factor: not less than 0.60

  • Weight: not more than 2.35 kg

  • Operating conditions: from -50 to +50
