Designation:

AU-220M Bajkal

Info
Manufacturer: OAO Central Research Institute BUREVESTNIK
Product type: Turrets
Name: Remote controlled weapon station

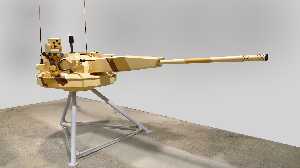

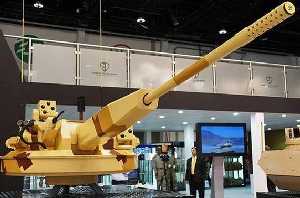

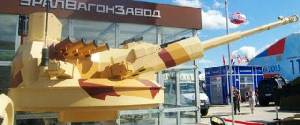

AU-220M Remote Controlled Weapon Station armed with BM-57 57mm automatic cannon, developed by CRI BUREVESTNIK and proposed by Uralvagonzavod/ It can be mounted on light and medium armored vehicles, such as BMP-3. It was first demonstrated at the IDEX-2015 exhibition.

Automatic gun can fire two types of unitary 57 mm ammunition:

  • 53-UBR-281U Armor-piercing Tracer Round

  • 53-ERM-281U Fragmentation Tracer Round

Characteristics of AU-220M

  • Rate of fire - 120 rounds per minute

  • The initial velocity of the projectile up to 1000 m/s

  • The fire control system with two-plane stabilization

Automatic 57 mm gun has 200 rounds ammunition. The maximum firing range up to 12 km. The ammunition includes armor-piercing, high-explosive rounds and guided missiles.

FIRE CONTROL SYSTEM:

The FCS controls the operations of target detection and identification, gun laying and firing of the 57mm automatic gun and 7.62mm machine-gun when firing from a halt, on the move and on the float in any combat enviroment.

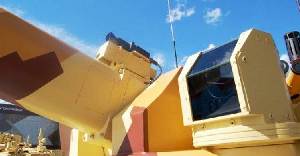

The FCS is equipped with a sight unit, comprising a combined sight with thermal-imaging and TV channels, a laser-finder and independent dual-axis field of view stabilization.

PROTECTION:

  • All-around fire - protection against 7.62mm bullets (~Level 3 acc. to STANAG 4569).

  • Front arc - protection against 30mm bullets (~Level 5 acc. to STANAG 4569).

Specifications:
Property Value
Main weapon caliber (mm)
57
Auxiliary gun calibre (mm)
7.62
Muzzle velocity (m/s)
1000
Weight (kg)
3200
Ammunition of the main gun
200
Firing range (m)
12000
Ammunition of the auxiliary gun
2000
Length (mm)
5820
Width (mm)
2100
Height (mm)
1300
Rate of fire (rds/min)
120
Depression (degree)
-5
Elevation (degree)
75
Traverse arc (degree)
360

Included in:
Product Amount
2Û38 Derivatsija-PVO (Anti-aircraft system)
1
BMP-3 Derivatsija (Modernization of the vehicle)
1
BRM-3K Rys (Reconnaissance Vehicle)
1
Enigma AMFV (Wheeled armoured personnel carrier)
1
Mbombe 8 (Wheeled armoured personnel carrier)
1
T-15 Armata (Infantry fighting vehicle)
1
Vihr/Udar (Robot, Unmanned Vehicle)
1
