Designation:

Patrul-A

Info
Manufacturer: ASTAIS
Product type: Auxiliary Vehicles
Name: Mine protected carrier

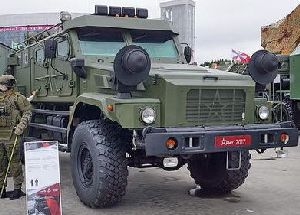

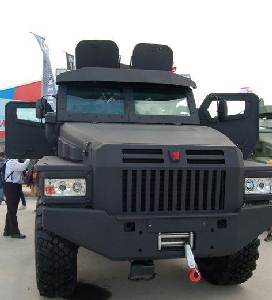

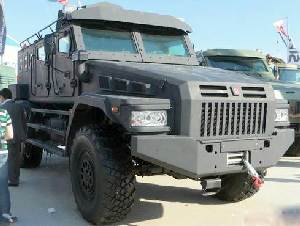

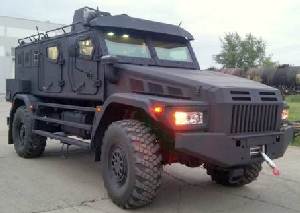

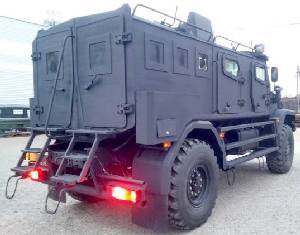

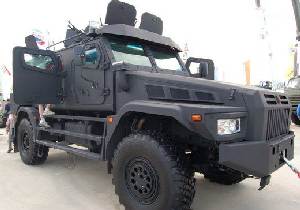

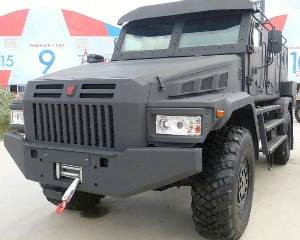

Armored vehicle Patrul-A was developed by order of National Guard of the Russian Federation. The vehicle based on the KAMAZ-43501 4x4 truck.

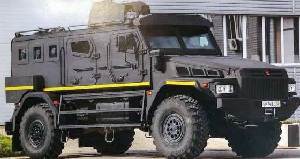

Astais Company has developed three versions of the car. One of them is for the Ministry of Defence.

The machine is a MRAP type and can perform the task of patrolling the area, and other.

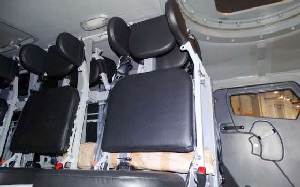

It can carry up to 10 fighters. Gross weight - 12.7 tons, maximum speed - 100 km/h. Hull of the vehicle can protect the crew from bullets of 7.62 mm, also provides protection against mines and improvised explosive devices.

The development of the vehicle started from the middle of 2014. First prototypr was created in 2015, it is equipped with a Russian-made engine and transmission, manufacturing KamAZ.

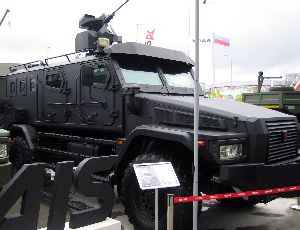

The first prototype of the Patrul-A was presented at the International Military Forum "Army 2015".

Specifications:
Property Value
Number of drive wheels
4
Number of wheels
4
Crew
10
Weight (kg)
12700
Max. road speed (km/h)
100
Wheelbase (mm)
4180
Ground clearance (mm)
380
Fording depth (mm)
1750
Trench (mm)
600
Vertical obstacle (mm)
500
Max. road range (km)
1000
