Designation:

TERREX 2

Info
Manufacturer: Singapore Technologies Kinetics Ltd - STK
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

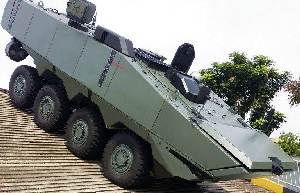

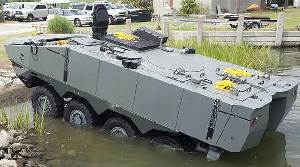

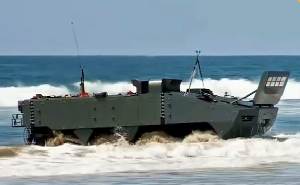

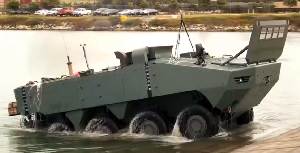

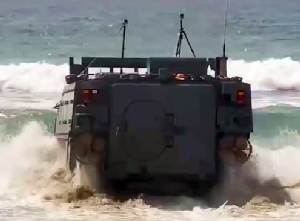

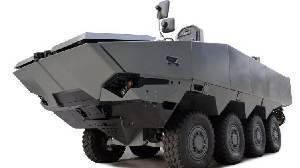

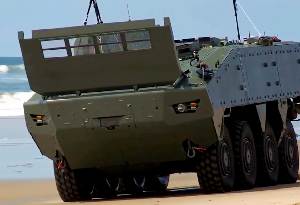

The TERREX 2’s class-leading design grants it superior mobility, survivability and technological integration that allows it to be survivable on land and in water. Its uniquely shaped hull and innovative swim systems allow the TERREX 2 to be nimble in littoral operations, achieving speed beyond 6 knots and survivable up to Sea State 4 conditions. With All-Wheel steering capability, the TERREX 2’s advanced driveline design accords it superior manoeuvrability and a tight turning radius to overcome challenging terrain and grants it agility in urban operations.

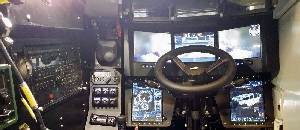

The TERREX 2’s first-in-class V-over-VTM design is highly protected against mine and IED blasts, while maximising crew space without sacrificing the payload capability of the vehicle. Integrating smart vetronics solutions like customisable driver touch-screen dashboard displays, All Round Surveillance System, Closed Hatch Driving System and Vehicle Navigation, the TERREX 2 enables unmatched situational awareness for the crew even when operating close-hatched.

Designed to maximise space for crew and equipment, the TERREX 2 seats 14 (including driver and commander) with adequate space for mission loads as required. Its weight efficient design also means it has outstanding payload capability, allowing for flexible configurations of protection and weapon solutions. The TERREX 2 is able to integrate advanced weapon systems like remote weapon systems armed with 30mm cannon.

Specifications:
Property Value
Weight (kg)
30000
Length (mm)
8500
Width (mm)
3000
Height (mm)
3000
Crew
2
Troops
12
Max. road speed (km/h)
90
Max. water speed (km/h)
10
Number of drive wheels
8
Number of wheels
8


Has folowing part:
Total Amount
4500 SP (Transmission)
1
C9.3 ACERT (Diesel engine)
1


Last Contracts:
Qnt Customer Value Add Date
(Close Date)
Unit cost
16
USA
$121.500.000
Mar 2016
(Dec 2017)
$7,593,750
Average Unit Cost:
$7,593,750
