Designation:

N35-4/JAIS 4x4

Info
Manufacturer: NIMR Automotive LLC
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

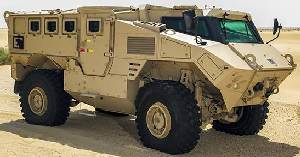

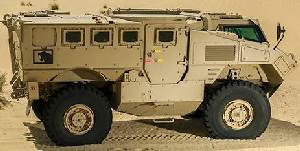

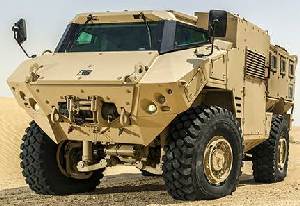

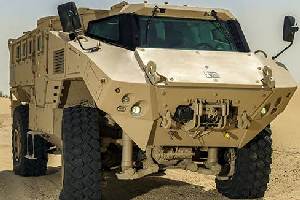

The N35-4 is a highly mobile 4x4 ballistic and blast protected vehicle. The mine protected motorised infantry vehicle offers a high protection level, power to weight ratio, modularity and payload capacity.

The N35 provides the essential balance between firepower, survivability, mobility and cost for modern, conventional and asymmetric operations. Crew survivability is centred around a battle-proven "crew citadel" protection system, protecting against mine, IED and ballistic threats. The N35 vehicle architecture supports multiple missions. The vehicle can accommodate a full motorised infantry section, with a manned turret or remote weapon system. The vehicle also provides cost-effective solutions for recce, patrol, utility and specialist roles, such as the ambulance variant.

Key features:

  • Proven survivability

  • Extremely compact

  • High internal volume

  • High mobility

  • Modern suspension and powertrain

  • High power to weight ratio

  • Modularity

  • Excellent situational awareness

  • Future technology insertions

  • Powertrain growth path to 600hp

Available Options:

  • Ride height adjustment with 4-stage with display

  • Winterisation kit

  • Fire suppression system (crew and engine compartments)

  • Battery monitoring /power management system

  • Health, usage and monitoring system

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Length (mm)
5964
Width (mm)
2700
Height (mm)
2560
Wheelbase (mm)
3350
Payload (kg)
4300
Weight (kg)
18500
Max. road range (km)
700
Crew
2
Troops
7
Max. road speed (km/h)
105
Number of forward gears
6
Fuel capacity (l)
360
Maximum torque (Nm)
1850
Engine power output (h.p.)
450
Ground clearance (mm)
420
