Designation:

Uran-14

Info
Manufacturer: JSC 766 UPTK
Product type: Auxiliary Vehicles
Name: Robot, Unmanned Vehicle

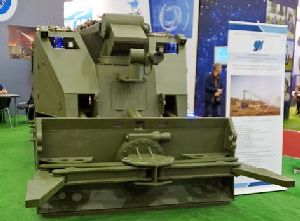

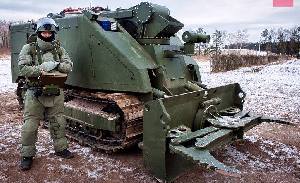

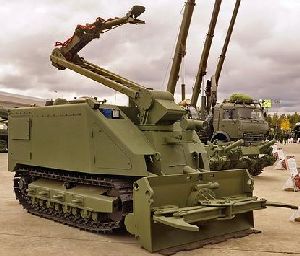

Uran-14 - multi-robotic system (class: up to 14 tons) designed for firefighting tasks. The uniqueness of this complex is the ease and convenience of management, as well as performance and safety, avoids direct contact with the person in the area of fire extinguishing.

Specifications of the base vehicle:

  • Maximum weight - 14 tons

  • Dimensions - 3800mm x 2180mm x 2019mm

  • Power - 240 hp

  • Maximum speed -12 km/h

  • Remote controle

  • Performance of water the fire pump - 2000 l/min

  • The range of solid water stream - not less than 50 m;

  • Range solid foam jet - of at least 35 m.

  • The volume of the water tank - 2000 l

  • The amount of foaming agent tank - 600 l

  • The angles of rotation of the trunk monitor - 360 gr. horizontal

  • Ensure the mobility and the ability of the machine when connected to an external water source



Specifications:
Property Value
Weight (kg)
14000
Length (mm)
3800
Width (mm)
2180
Height (mm)
2019
Engine power output (h.p.)
240
