Designation:

Uran-9 CMRC

Info
Manufacturer: JSC 766 UPTK
Product type: Auxiliary Vehicles
Name: Robot, Unmanned Vehicle

Uran-9 CMRC complex designed for enhance the effectiveness of combat missions and reducing the loss of unit personnel during the conduct of hostilities including on urbanized areas.

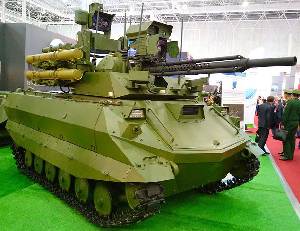

Uran-9 for the first time publicly demonstrated at the exhibition and forum Army-2016.

It provides remote reconnaissance and fire support for combined-arms, reconnaissance and anti-terrorist units.

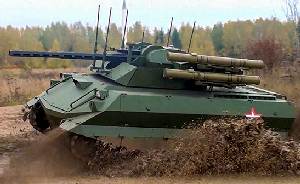

The overall dimensions of this 10-ton armored tracked vehicle are 5.12 x 2.53 x 2.5 meters.

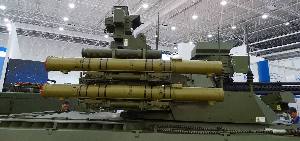

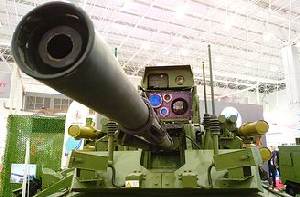

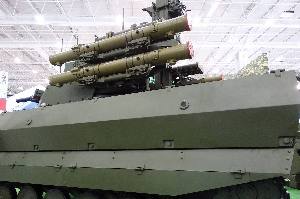

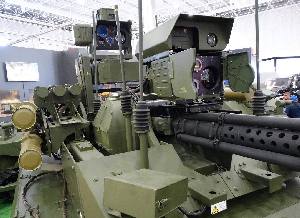

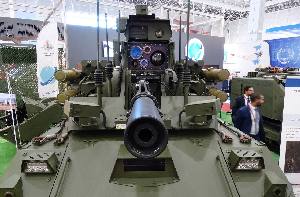

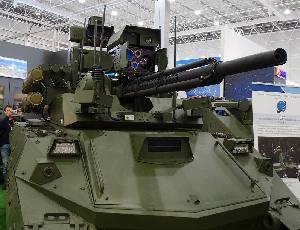

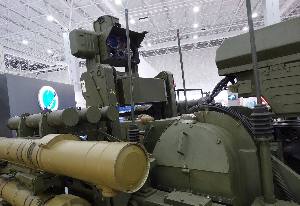

The robot is armed with a 30-mm automatic cannon 2A72, a 7.62-mm PKTM machine gun, and a set of guided Ataka weapons located in a rotating turret. In addition to the robot can be installed anti-aircraft missiles such as "Igla", jet flamethrowers such as Shmel or RPG.

The Uran-9 complex can effectively combat both day and night, is capable of detecting enemy tanks at daylight hours for 6 km, at night - for 3 km, to detect laser irradiation of the enemy's targeting systems and independently put smoke curtains. Diesel-electric power pack allows to reach speeds of up to 35 km/h.

The complex includes:

  • 4 robots of reconnaissance and fire support

  • 1 mobile control point on the KamAZ wheel chassis

  • transportation means - 2 tractors with platforms

Uran-9 has the following modes of motion:

  • Automatic following the programmed route with automatic obstacle clearance

  • Follow the route with manual control of the operator from the mobile control point

  • Movement with a portable remote

  • Automatic movement in the column

The range of the remote control of system is about 3 km, and the maximum distance between robots is up to 1 km.

Since 2016 it is in series production.


Specifications:
Property Value
Weight (kg)
10000
Main weapon caliber (mm)
30
Auxiliary gun calibre (mm)
7.62
Payload (kg)
2000
Max. road speed (km/h)
35
Length (mm)
5120
Width (mm)
2530
Height (mm)
2500
Distance of remote control (m)
3000


Has folowing part:
Total Amount
ABM-M30M3 (Remote controlled weapon station)
1


Last Contracts:
Qnt Customer Value Add Date
(Close Date)
Unit cost
5
RUSSIA

Jan 2016
(Dec 2016)

Average Unit Cost:

All contracts...


Related Articles

Uran-9 Combat Robots began to enter into service in the Armed Forces of Russia (25.01.2019)


Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

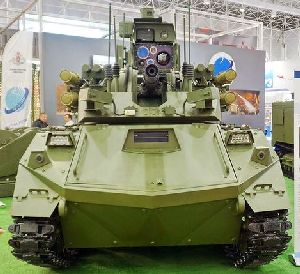

Uran-9 CMRC

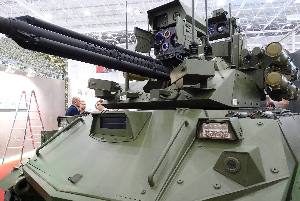

Uran-9 CMRC

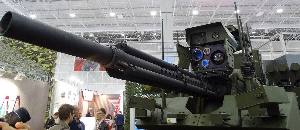

Uran-9 CMRC

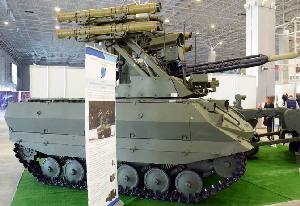

Uran-9 CMRC

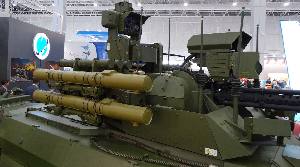

Uran-9 CMRC

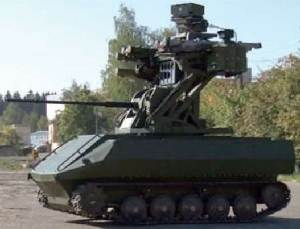

Uran-9 CMRC

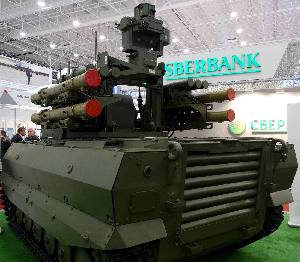

Uran-9 CMRC

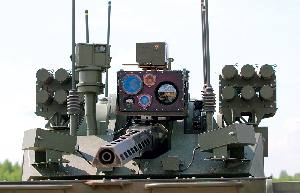

Uran-9 CMRC
