Designation:

DONKEY

Info
Manufacturer: General Robotics Ltd.
Product type: Auxiliary Vehicles
Name: Robot, Unmanned Vehicle

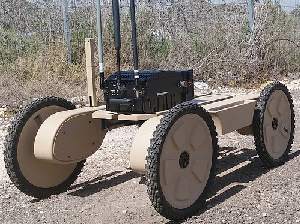

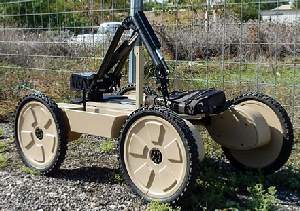

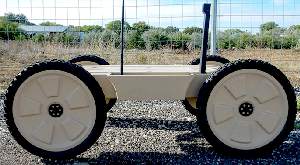

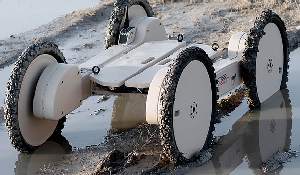

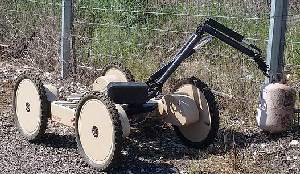

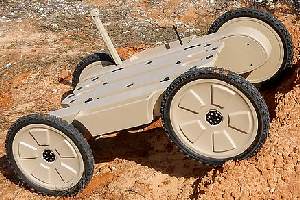

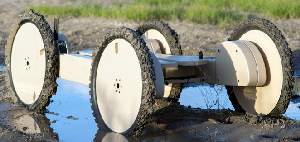

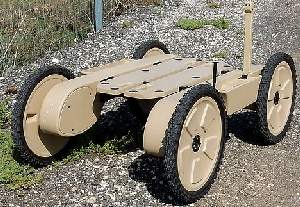

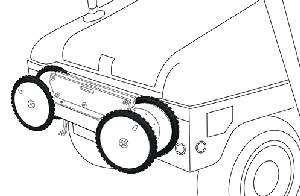

The DONKEY™ is a light weight multi-role robotic platform designed for rapid deployment at the field. The DONKEY™ is collapsible and can be easily stowed or hung on vehicles for rapid transportation and deployment by any soldier at the field.

The platform is controlled by the RANGER™ RCU, providing a range of driving capabilities, including "FOLLOW THE LEADER", programmable GPS coordinates, or with a simple joystick operation.

RANGE OF MISSIONS

  • Route opening, IED detection and clearing

  • Payload carrier - from supplies to EW equipment

  • Provocation and deception

  • Surveillance & reconnaissance

  • Sensors and charges distribution

  • Remote inspection

  • Rescue

CAPABILITIES

  • Light weight and collapsible – 88 lbs. (40 kg)

  • Can carry payloads up to 154 lbs. (70 kg)

  • Rapid deployment – less than 30 seconds (like opening a stretcher)

  • Discrete – innovative electric silent driving mechanism (electric hub) embedded in every wheel

  • 4x4 maneuverability

  • 30 degrees slop climbing

  • Max speed – 10 mph (16kph)

  • Travel distance – up to 25 miles (40 km)

  • Ranger interface based on Panasonic Toughpad and a customized operating jacket

The DONKEY™ Robot is designed for simplicity and can be opened in seconds (like opening a stretcher). A soldier can operate the platform after a few minutes of training. Each platform comes with a video demonstration and a simulator for training.

Specifications:
Property Value
Weight (kg)
110
Payload (kg)
70
Weight for transportation (kg)
40
Max. road speed (km/h)
16
Max. road range (km)
50
Number of wheels
4
Number of drive wheels
4
