Designation:

MANTRA 4x4

Info
Manufacturer: Franz Achleitner Fahrzeugbau und Reifenzentrum GmbH
Product type: Auxiliary Vehicles
Name: Truck

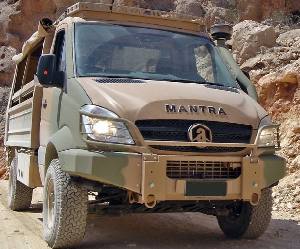

In the field of logistical vehicles, the MANTRA 4x4 is built to provide outstanding mobility and performance using state-of-the-art technology to guarantee highest safety, reliability and quality for militarized vehicles with - depending on variant - a 7,2 tons GVW. Achleitner has designed a vehicle with permanent 4WD technology and a variety of platform bodies for harsh conditions.

The MANTRA 4x4 is available in a range of sizes and styles including:

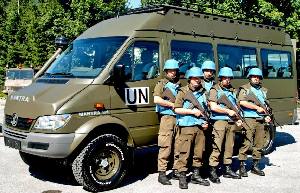

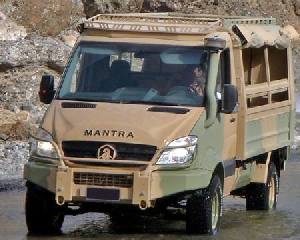

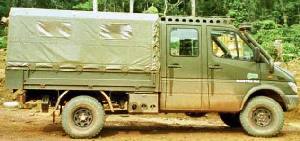

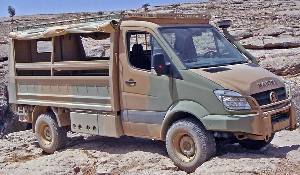

  • Troop carrier: available with tailor-made bodies on a double or single-cab chassis or as a bus with seat arrangement for up to 21 persons, in miscellaneous versions and equipments

  • Command or communication vehicle: available with tailor-made bodies on different cab versions or as van with communication unit, radio-table and navigational unit, with external power supply

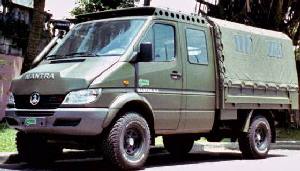

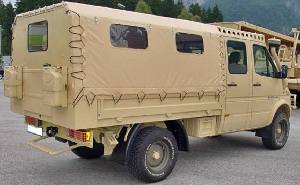

  • Carrier platform: available as platform with sliding canvas, with a PLS loading handling system and a universal platform for fast and simple operation

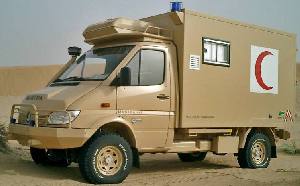

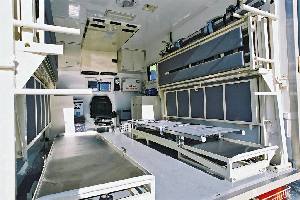

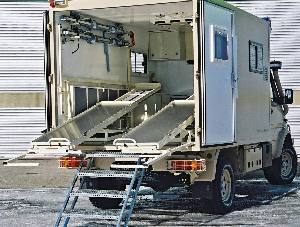

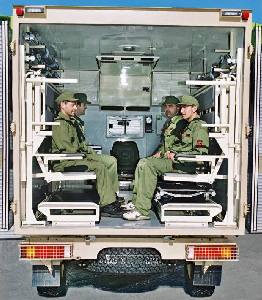

  • Ambulance: available as a van or box body with up to four extractable latches and different medical equipment

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Engine power output (h.p.)
205
Maximum torque (Nm)
470
Max. road speed (km/h)
130
Gradient (%)
90
Side slope (%)
40
Turning circle radius (mm)
7000
Max. road range (km)
1000
Weight (kg)
8500
Payload (kg)
2500
Crew
2
Troops
14
Length (mm)
6300
Width (mm)
2400
Height (mm)
2670
Wheelbase (mm)
3665
