Designation:

EOPTRIS 360

Info
Manufacturer: OIP Sensor Systems
Product type: Sighting Systems
Name: Panoramic periscope

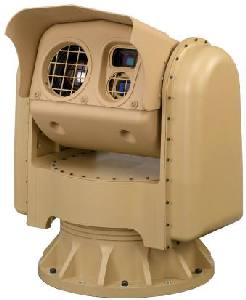

The EOPTRIS 360 is a multipurpose stabilized sight, with accurate dual-axis gyro stabilization platform equipped with a wide range of advanced sensor array to provide 24 hours observation and surveillance capabilities.

The EOPTRIS 360 is designed for main battle tanks and armoured fighting vehicles. The system is very compact, robust and has an open architecture for easy integration.

Applications

  • Long-range target acquisition for land and navy applications

  • Independent surveillance

  • Fire on the move

Features & options

  • Geolocalisation (INS)

  • Target tracking capabilities

  • Observation scanning function

  • Enslavement of line-of-sight to external systems

  • Designator

Specifications:
Property Value
Wide field of view (degrees)
14.3
Narrow field of view (degrees)
4.6
Horizontal resolution (pixel)
640
Vertical resolution (pixel)
480
Thermal imaging camera
1
Weight (kg)
36
Length (mm)
250
Width (mm)
100
Height (mm)
400
Power requirement (W)
100
