Designation:

MATILDA

Info
Manufacturer: Mesa Robotics, Inc.
Product type: Auxiliary Vehicles
Name: Robot, Unmanned Vehicle

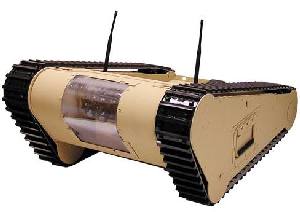

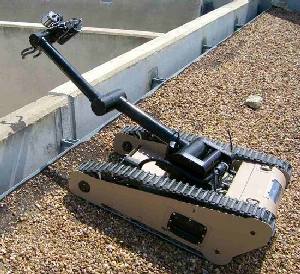

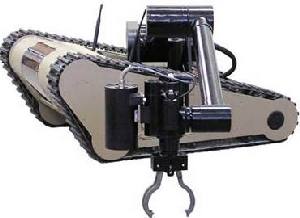

Mesa Associate's Tactical Integrated Light-Force Deployment Assembly (MATILDA) is a remote controlled surveillance and reconnaissance robot created and designed by the Mesa Robotics Corporation. It is available in many different models such as the Urban Warrior, Block II, and Scout, which feature different combinations of components for increased utility. These options include a sensor mount, manipulator arm, weapon mount, fiber optic reel, remote trailer release, and disrupter mount. When purchased the basic system includes the platform, the control unit, and battery charger.

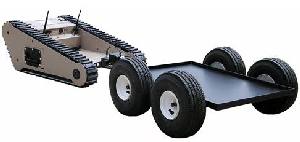

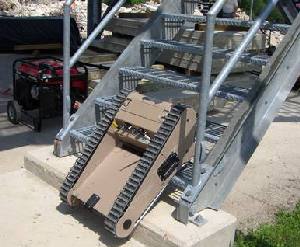

The robot is relatively low-profile and lightweight. It's capable of speeds up to 2 mph (3.22 km/h) and has a payload capacity of 125 pounds (56.7 kg). It can also pull as much as 225 pounds (102.06 kg) or up to 500 pounds (226.8 kg) using an optional four-wheel tactical trailer with remote release. MATILDA is an all weather robot with a 6- to 10-hour extended battery operating time and can climb a 50-degree stair incline. The robot comes equipped with a pan–tilt–zoom camera, capable of producing both color and black and white resolution, a rear fixed black and white resolution camera, two-way audio (audio crossover), and HD radio capabilities.

Specifications:
Property Value
Length (mm)
760
Width (mm)
530
Max. road speed (km/h)
3.2
Payload (kg)
56
Distance of remote control (m)
700
Time of continuous operation (hours)
10
Weight (kg)
84
