Designation:

NERVA HD

Info
Manufacturer: Nexter
Product type: Auxiliary Vehicles
Name: Robot, Unmanned Vehicle

Nerva S is a small-sized UGV from the Nerva family, larger than the Nerva LG.

The serial version was demonstrated at Milipol 2013.

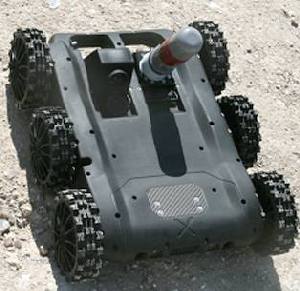

The Nerva HD UGV designed on a six-wheeled chassis. Its weight is 12 kg, dimensions 65x45 cm. The electric motor give a maximum speed of up to 15 km/h, battery life is 2 hours of continuous operation. The equipment includes a camera of a 360° view, a front HD camera, various plug-in modules. The control range is up to 1000 m. Compared with smaller robots, the Nerva HD has a more complete navigation kit including a GPS system. As a result, the robot is able to move in semi-automatic mode at specified points of the route, autonomously patrol the terrain or automatically return to the starting point with a loss of communication.

Specifications:
Property Value
Number of wheels
6
Number of drive wheels
6
Weight (kg)
12
Max. road speed (km/h)
15
Length (mm)
65
Width (mm)
45
Time of continuous operation (hours)
2
Distance of remote control (m)
1000
